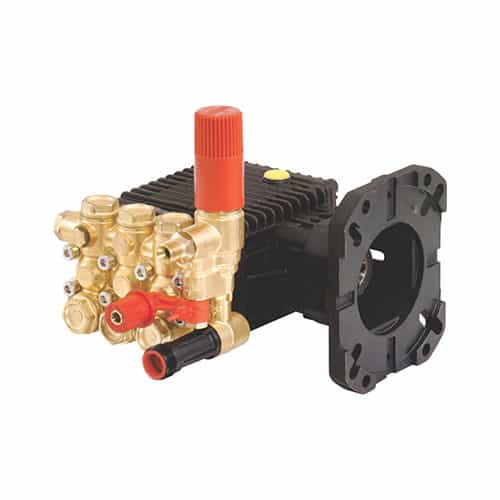

General Pump EZ2536EUI Flanged Mounting Ready Triplex Plunger Pump - 3.6 GPM, 2500 PSI, 1750 RPM
Brand:
Mfr. Model #:
EZ2536EUI
KR Part #:
GPEZ2536EUI
Weight:
22.00 lbs
GTIN:
682491119906
Temporarily Unavailable
Created with solid ceramic plungers. Stainless-steel inlet and outlets. Oil-bath crankcase crafted with anodized aluminum. Note: Includes mounting flange, unloader and injector.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 3.6
Max PSI: 2500
Shaft Diameter: 28.5 millimeter
Stroke: 11 millimeter
RPM: 1750
Max Temperature: 165 degrees F
Product Description
EZ Series 44 E
Pressure cleaning pumps are designed with solid ceramic plungers and a NEMA184C mounting flange. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase. Flanged for direct coupling to electric motors and includes unloader and downstream injector.
Specifications:
- GPM: 3.6
- PSI: 2500
- RPM: 1750
- Bore: 0.708 in./18 mm
- Stroke: 0.433 in./11 mm
- HP: 6.2 EBHP
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Plunger Bore: .708 in.
- Plunger Stroke: .433 in.
- Crankcase Oil Capacity: 14.0 oz.
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2" BSPP-F
- Discharge Port Thread: 3/8" BSPP-F
- Shaft Diameter: 1.125 in. / 28.5 mm
- Ship Weight: 18.5 lbs.
- Dimensions: 8.8 in. x 8.8 in. x 6.3 in.
