Series 4 Positive Displacement Rotary Vane Pump

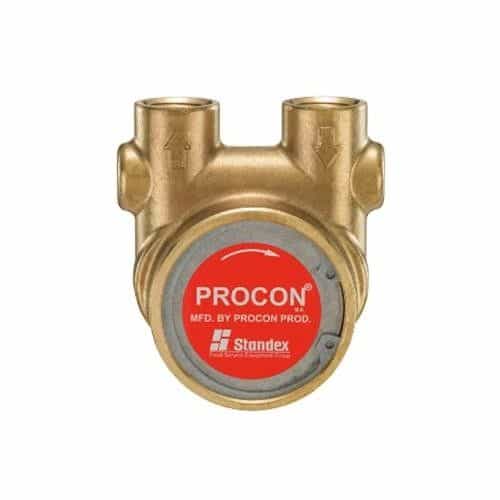

The Procon 104E240G12BC Pump is a brass rotary vane pump from the Procon 4 Series. This positive displacement model pump is designed to operate virtually maintenance-free. It has 1/2" NPT inlet and discharge ports, a maximum flow rate of 240 GPH, and a pressure range from 60-99 PSI.

This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications. Features bolt-on style mounting.

Dimensions: 4.1" x 3.88" x 4.48"

Specifications:

• Rotary vane, positive displacement design
• Non-food grade (1.5% maximum lead) - no agency approval
• Bolt-on mounting with single flat drive
• 240 GPH
• 60 to 99 PSI pressure range - 99 PSI default relief valve spring setting
• Ethylene polypropylene type 21 seals
• Plastic hi-temp solid valve type
• Clockwise rotation
• SPCL clearances
• 1725 RPM nominal speed
• 6' maximum lift self priming
• Inlet: 1/2" NPT
• Outlet: 1/2" NPT

Features:

• Self priming
• Maintenance free
• Low vibration and pulsation characteristics

Applications:

• Circulation
• Reverse osmosis
• Booster
• Solar applications
• Hydraulic systems
• Desalination
