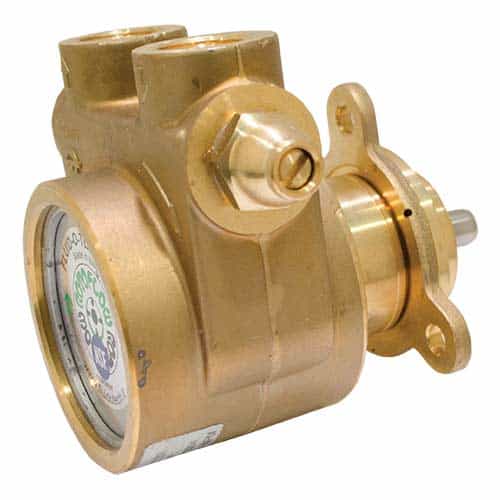

Fluid-O-Tech PA501F Brass Flange-Mount Pump 1/2" Ports
Brand:
Mfr. Model #:
PA501F
KR Part #:
FTPA501F
Weight:
4.00 lbs
Availability:
2
Low Inventory Get It Today
Medium-volume rotary vane pump featuring stainless steel AISI 303 rotor and carbon graphite internals. Brass pump housing materials, connects to motor with flange.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 170
Max PSI: 260
Max Temperature: 158 degrees F
RPM: 1725
Product Description
Rotary Vane Brass-Body Water Pump
This brass-body rotary vane pump uses a stainless steel shaft and carbon graphite internal parts for durability and quiet operation. The inlet and outlet ports are 1/2" NPT threaded, and the pump is intended to be directly mounted to the motor with a stainless steel clamp. Provides flow up to 170 GPH at a maximum static pressure of 260 PSI.
Specifications:
-
Pump Housing Material: Brass
-
Shaft Construction: Stainless Steel
-
Pump Mount:Flange
-
Maximum Flow Rate: 170 GPH
-
Inlet/Discharge Ports: 1/2" NPT-F
-
Maximum Static Pressure: 260 PSI
-
Maximum Temperature: 158° Fahrenheit
-
Maximum Torque: 1725 RPM
- NSF Compliant (safe for food)
