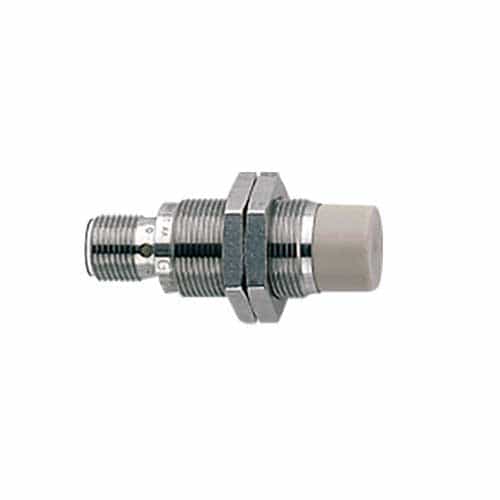

Stainless Steel Housed Sensor

The IGT200 resists temperature shock during temperature fluctuations. Housing is made with stainless steel that withstands harsh environments and chemicals found in car washes and is a material valued in the food and beverage industry. Increased sensing range minimizes risk to vehicles extending the range a vehicle can be detected. Reaches a maximum sensing range of 12 mm.

Specifications:

• Product Characteristics

• Electrical Design: PNP/NPN

• Output Function: Normally Open

• Sensing Range [mm]: 12

• Housing: Threaded Type

• Dimensions [mm]: M18 x 1 / L = 51


Application:

• System Gold-Plated Contacts; Increased Sensing Range

• Application: Regular Cleaning Processes

• Electrical data:

• Operating voltage [V]: 10...36 DC

• Current consumption [mA]: 10; (24 V)

• Protection Class II

• Reverse polarity protection: Yes


Outputs:

• Electrical Design: PNP

• Output Function: Normally Open

• Max. Voltage Drop Switching Output DC [V]: 2.5

• Permanent Current Rating Of Switching Output DC [Ma]: 100

• Switching Frequency DC [Hz]: 300

• Short-Circuit Protection: Yes

• Type of Short-Circuit Protection: Yes (Non-Latching)

• Overload Protection: Yes


Monitoring Range:

• Sensing Range [Mm]: 12

• Real Sensing Range Sr [Mm]: 12 ± 10 %

• Operating Distance [Mm]: 0...9.7

• Increased Sensing Range: Yes


Accuracy / Deviations:

• Correction Factor Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminum: 0.4 / Copper: 0.3

• Hysteresis [% Of Sr]: 3...15

• Switch-Point Drift [% Of Sr]: -10...10

• Operating Conditions:

• Ambient Temperature [°C]: 0...100

• Protection: IP 68; IP 69K; ("COP")


Tests /Approvals:

• EMC:

• EN 61000-4-2 ESD - 4 kV Cd / 8 kV Ad

• EN 61000-4-3 Hf Radiated - 10 V/M

• EN 61000-4-4 Burst - 2 kV

• EN 61000-4-6 HF Conducted - 10 V

• EN 55011 - Class B

• Mttf [Years] - 1925

• Ul Approval

• Ta: 0...40 °C

• Enclosure Type: Type 1

• Voltage Supply: Limited Voltage/Current

• File Number: Ul E174191


Mechanical Data:

• Weight [G]:  44.2

• Housing: Threaded Type

• Mounting: Non-Flush Mountable

• Dimensions [Mm]: M18 X 1 / L = 51

• Thread Designation: M18 X 1

• Material: Stainless Steel (1.4404 / 316L); Sensing Face: PEEK


Displays / Operating Elements:

•  Switching Status: 4 x 90° LED, yellow

Accessories:

• Items supplied: Lock Nuts: 2

• Remarks:

• Pack Quantity: 1 Pcs.

• Electrical Connection - Plug

• Connector: 1 X M12; Contacts: Gold-Plated


Features:

• Wide operating temperature range

• Temperature shock resistant even in case of frequent temperature fluctuations

• Robust stainless-steel housing for use in the food and beverage industry

• Resistant to high-pressure cleaning with aggressive cleaning agents

• High protection rating for the requirements of harsh industrial environments
