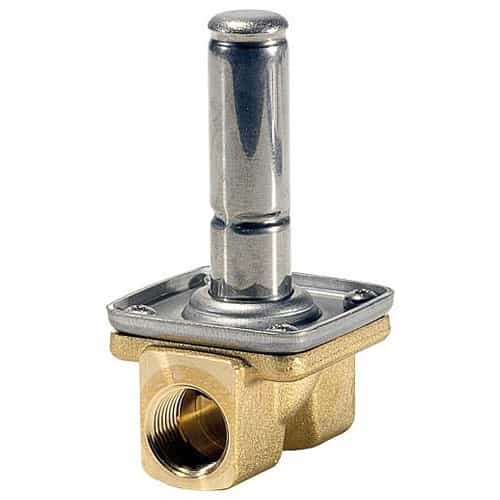

Danfoss 032U6516 No Coil EVSI6 Type 2-Way Normally Closed Brass Solenoid - 3/8 NPT
Brand:
Mfr. Model #:
032U6516 EVSI6
KR Part #:
DF06LC
Weight:
0.56 lbs
In Stock
Brass body solenoid valve with two-way function and single-flow direction. NPT 3/8". Type EVSI6.
Technical Specifications
Max PSI: 710
Min Temperature: 14 degrees F
Max Temperature: 194 degrees F
Inlet Port: 3/8 inch
Certifications: CSA
Certifications: UL
Product Description
NC Two-Way Coil-Free Solenoid Valve
The Danfoss 032U6516 solenoid valve allows you to operate a variety of oil and inert gas services at your car wash. This brass two-way solenoid is a normally closed valve with single flow direction and 3/8" NPT connection.
Specifications:
- Function: Normally closed
- Number of Ways: 2/2-way solenoid
- Direction: Single flow
- Temperature Range: 14-194 Fahrenheit
- Connection: 3/8" NPT
- Maximum Test Pressure: 710 PSI
- Maximum Working Pressure: 350 PSI
- Minimum Opening Differential Pressure: 2 PSI
- Maximum Opening Differential Pressure: 142 PSI
- Type: EVSI6
- Orifice Size: ¼"
- Cv Value: 0.82 gallon/minute
- Kv Value: 0.7 m3/h
- Maximum Media Viscosity: 50 cSt
- NBR gasket materials
- No Coil
- CSA Certified
- UL Listed
- Use #032U1063 Kit to repair
