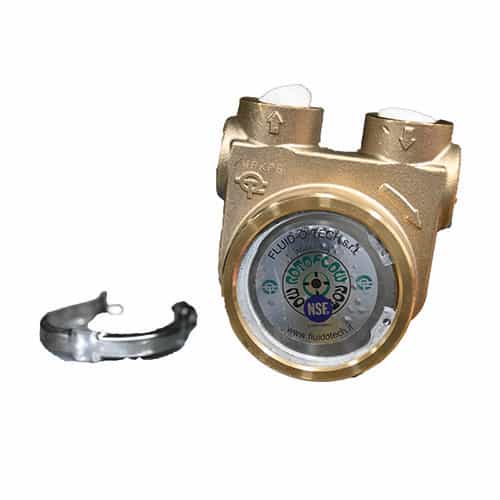

Fluid-O-Tech PA701 Brass Clamp-Mount Pump with Bypass, 1/2" Ports, 230 GPH
Brand:
Mfr. Model #:
PA701
KR Part #:
FTPA701
Weight:
5.00 lbs
Usually Ships in 2 Weeks
Medium-duty rotary vane pump with exceptional volume capacity, moving up to 230 GPH. Clamp mount, relief valve bypass. Stainless steel rotor and carbon graphite internals provide reliability and durability.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 230
Max PSI: 290
Max Temperature: 158 degrees F
RPM: 1725
Product Description
Medium-Duty Brass Water Pump with Bypass
Features a stainless steel AISI 303 rotor, and carbon graphite pumping chamber and vanes within a brass pump housing, the Fluid-O-Tech PA701 rotary vane pump provides a max flow rate of 230 GPH at a maximum static pressure of 260 PSI. Attaching through a clamp mount, the PA701 connects through 1/2" NPT female inlet and outlet ports. An integral bypass valve provides optimal pressure control. NSF compliant, safe for potable water.
Specifications:
- Pump housing material: Brass
- Shaft construction: Stainless steel
- Internal materials: Carbon graphite
- Pump mount: Clamp
- Maximum flow rate: 230 GPH
- Inlet/Discharge ports: 1/2" NPT-F
- Maximum static pressure: 290 PSI
- Maximum temperature: 158° Fahrenheit
- Maximum torque: 1725 RPM
- NSF Compliant (safe for food)
