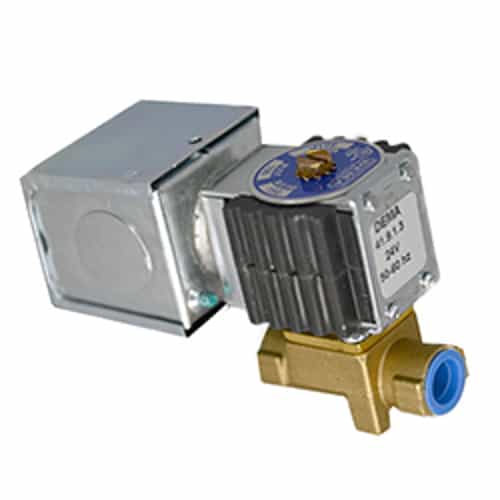

Dema 401P.3 Brass Direct Acting 24VAC Solenoid Valve - 1/4 NPT, Buna
Brand:
Mfr. Model #:
401P.3
KR Part #:
SOD401P24
Weight:
1.00 lbs
Brass direct-acting solenoid valve with 1/4" ports. 24 volt AC, 150 PSI maximum pressure.
Prop 65
Technical Specifications
Voltage AC: 24
Max Temperature: 200 degrees F
Max PSI: 150
Inlet Port: 1/4 inch
Product Description
Brass 24V Direct Acting Solenoid - 1/4" NPT
The Dema 401P.3 solenoid valve is a direct-acting, normally closed valve designed for low pressure commercial applications. This brass body solenoid has 1/4" NPT pipe threads, a maximum pressure rating of 150 PSI, and a 7/64" orifice.
With direct-acting valves, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.
Specifications:
- 24 volt AC
- Direct acting
- Normally closed
- Brass body material
- Buna-N seals
- 1/4" NPT pipe
- Flow rate: 2.09 GPM at 60 PSI
- 7/64" orifice
- .27 CV flow factor
- Maximum pressure: 150 PSI
- Rated for 200 degrees F (fluid), 120 degrees F (ambient)
Recommended Applications:
- Water
- Air
- Light Oil
- Non-Corrosive
- Non-Explosive Liquids
