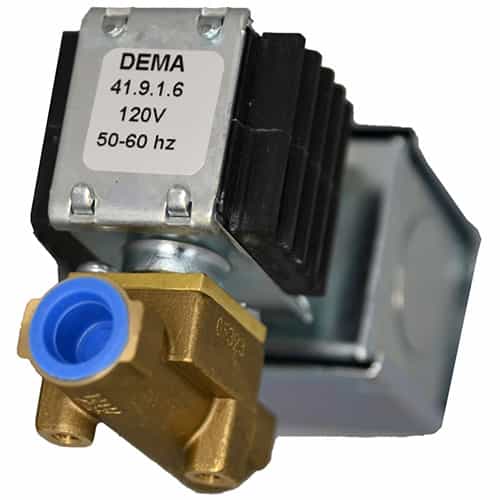

Dema 401P.6 Brass Direct Acting 120VAC Solenoid Valve - 1/4 NPT, Buna
Brand:
Mfr. Model #:
401P.6
KR Part #:
SOD401P120
Weight:
1.00 lbs
In Stock
Brass direct-acting solenoid valve with 1/4" ports. 120 volt AC, 150 PSI maximum pressure.
Prop 65
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 150
Voltage AC: 120
Max Temperature: 200 degrees F
Product Description
Brass 120V Direct Acting Solenoid - 1/4" NPT
The Dema 401P.6 solenoid valve is a direct-acting, normally closed valve designed for low pressure commercial applications. This brass body solenoid has 1/4" NPT pipe threads, a maximum pressure rating of 150 PSI, and a 7/64" orifice.
With direct-acting valves, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.
- 120 volt AC
- Direct-acting
- Normally closed
- Brass body material
- Buna-N seal
- 1/4" NPT pipe
- 2.09 GPM at 60 PSI
- 7/64" (.109") orifice
- .27 CV flow factor
- Maximum 150 PSI
- Minimum 0 PSI
- Rated for 200° Fahrenheit fluid and 120° Fahrenheit ambient.
Recommended Applications:
- Water
- Air
- Light Oil
- Non-Corrosive
- Non-Explosive Liquids
