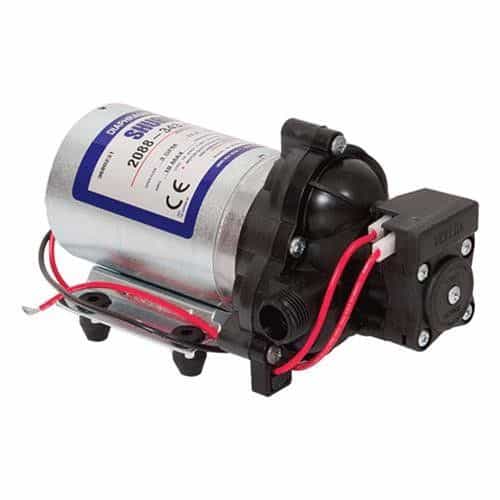

ShurFlo 2088-343-435 Pump 12VDC 3GPM
Brand:
Mfr. Model #:
2088-343-435
KR Part #:
SF2088343435
Weight:
4.61 lbs
GTIN:
752324001187
Low Inventory Get It Today
Manuals
The Shurflo 2088 pump offers up to 3 GPM and is commonly used for spot spraying, multi-tip spraying, and fertilizer drip applications. Shurflo 2088 models feature corrosion-resistant materials and the ability to run dry without damage to the pump! Great for RVs, campers, and trailers.
Technical Specifications
Voltage DC: 12
Amps: 7.7
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Max GPM: 3
Max PSI: 45
Product Description
Shurflo 2088 Series Diaphragm Pump
The ShruFlo 2088-343-435 pump, part of the ShurFlo 2088 Series, delivers reliable performance in low-flow, low pressure applications. This pump is commonly used in a variety of spot spraying, multi-tip spraying, and fertilizer drip applications that require flows of up to 3.6 GPM. Great for use in RVs, campers, and trailers.
*Note: old part number is 2088-343-135
Dimensions: 8 3/4" L x 5" W x 4 1/2" H
Features:
- Made with chemical-resistant materials
- Can run dry without damage
- Check valve and demand switch prevents fluid back flow
- Corrosion-resistant
- Mounts in any position
- Fully repairable pump body
- Self-priming up to 12 vertical feet
- Quiet operation
- Not listed for potable (drinking) water use
Specifications:
- Maximum Flow: 3 GPM (11.4 LPM)
- Maximum Pressure: 45 PSI
- Inlet Port: 1/2" MSPT male
- Outlet Port: 1/2" MSPT male
- 12 volt motor
- 7.7 amp maximum draw
- Viton valves
- Santoprene diaphragm
- 45 PSI (3.1 bar) demand switch
- 40 degrees F minimum fluid temperature
