Banner Sensors MQDC-WDSS-0430 Euro-Style Quick Disconnect Cable - 4 Pin Straight Connector, 30 Foot Cable
Brand:
Mfr. Model #:
MQDC-WDSS-0430
KR Part #:
BPSC6210
Weight:
2.30 lbs
Usually Ships in 4 Weeks

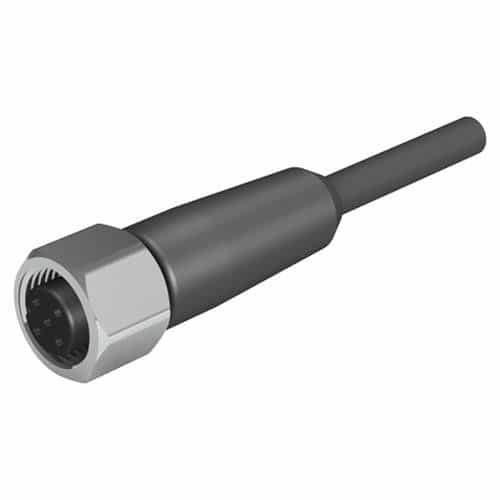

A cable set with 4 pin Euro Style connectors. Length measures 30 feet. Constructed using black PVC jacketing.
Product Description
M12 Euro Style Cable
The Banner Sensors MQDC-WDSS-0430 is a 30 foot cable set for car wash sensors. Connection features 4 contacts. A 4 pin Euro Style straight connector is made with a 316 stainless steel nut and a female design. The cable's outside diameter measures 4.80 millimeters. It is constructed with black PVC jacketing.Specifications:
Connector 1 Type: M12
Connector 2 Type: Flying Leads
Connector 1 Number of Contacts: 4
Cordset Length Range (m): 5.00-9.99
Cable Jacket Material: PVC
Number of Ends: Single Ended
Connector 1 Gender: Female
Overmold Material and Color: PVC Black
Shield/No Shield: No Shield
Outside Cable Diameter (mm): 4.80
Cordset Length (m): 9.00
Connector 1: Orientation Straight
Washdown Rated: Yes
Ecolab Certified : Yes
Hazardous Area: No
Oil/Grease Resistant: No
