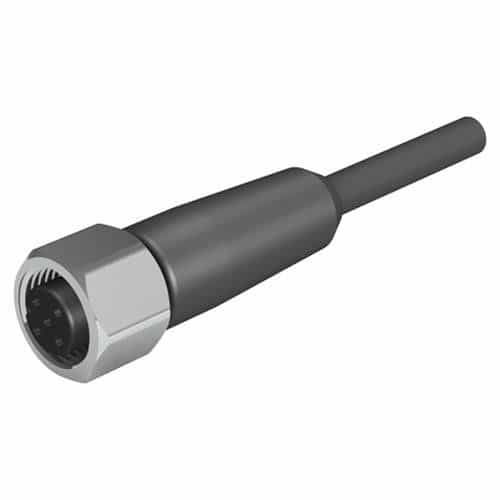

Banner Sensors MQDC-WDSS-0530 Single-Ended Euro-Style Quick Disconnect Cable - 30 ft., 250 V AC/DC
Brand:
Mfr. Model #:
MQDC-WDSS-0530
KR Part #:
BPSC6225
Weight:
2.30 lbs
Usually Ships in 4 Weeks
This is a strand of single-ended cable with a 5-pin Euro-style single key hex coupling. Jacketing is made with PVC and the coupling is fabricated with stainless steel. Compatible with 250-volt AC and DC electrical connections.
Product Description
PVC Jacketed Cable
Banner's MQDC-WDSS-0530 is cable made to connect sensors to a power source. Constructed with black PVC with abrasion resistant characteristics. Equipped with a 5-pin Euro-style M12 single key hex coupling made with 300 series stainless steel. Rated to handle 250-volt AC and DC electrical connections.
Specifications:
- Number of Contacts: 5
- Number of Connectors: 1
- Cable Jacket Material: PVC
- Cable Jacket Color: Black
- Connector Body Material/Color: PVC Black
- Outside Cable Diameter (mm): 5.2
- Cordset Length (m): 5
- Trunk Length (m): No Trunk
- Shield/No Shield: No Shield
- Coupling Material/Color: 316 Stainless Steel
- Maximum Temp. (°C): 105
- Current Rating (A): 4.0
- Minimum Temp. (°C): -40
- Voltage Rating (V): 250 VAC/VDC
- IP Rating: IP69
- Primary Connector Type: EURO
- Primary Coupling Method: M12 Single Key
- Primary Gender: Female
- Primary Orientation: Straight
- Primary Number of Conductors: 5
- Primary AWG: 22
- Secondary Connector Type: Flying Leads
- Feature: Washdown Rated: Yes
- Feature: Ecolab Certified: Yes
- Feature: Hazardous Area: No
- Oil/Grease Resistant: No
Features:
- Euro-style Quick Disconnect Cable
- 5-Pin Straight Connector for F&B Applications
- 9 m (29.5 ft) in Length abrasion resistant PVC cable
- Stainless Steel hex coupling nut and EPDM O-ring
- Part Number: 88517
