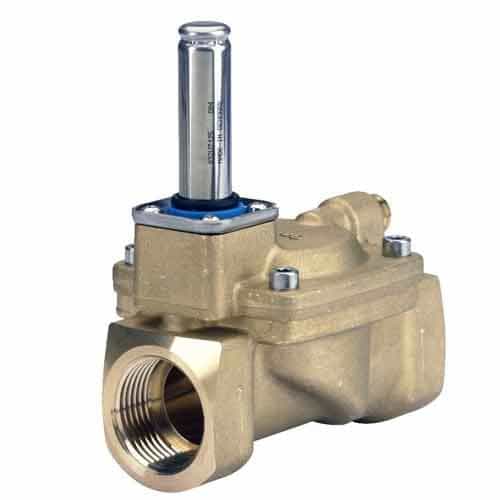

Servo-Operated Solenoid Valve

This valve is manufactured with brass. Can be used with applications involving drinking water (max. 90 °c), hot water (max 140 °c) and technical water. Valve operates via a servo-operated diaphragm. Maximum temperature the valve tolerates is 248 degrees Fahrenheit.

Specifications:

• Gross weight: 1.48 kg

• Net weight: 1.42 kg

• Actuator: B

• Actuator size: 13.5 mm

• Actuator size [in]: 0.53 in

• Actuator system [mm]: 13.5 mm

• Ambient temperature max. [°C]: 50 °C

• Ambient temperature max. [°F]: 122 °F

• Approval: C UL US LISTED DNV GL c UR us recognized

• Body material: Brass

• Connection Internal/External: Internal

• Connection material: Brass

• Connection size [in]: 1

• Connection standard: ANSI/ASME B1.20.1

• Connection type: NPT

• Cv value [gal/min]: 12.7 gal/min

• Differential pressure [bar] [Max]: 9.791 bar

• Differential pressure [bar] [Min]: 0.3 bar

• Differential pressure [psi] [Max]: 142 psi

• Differential pressure [psi] [Min]: 4.351 psi

• Est. time to open, water [ms]: 300 ms

• Flow direction: Single-flow

• Flow direction indicator Embossed 1-way arrow

• Fluid Group: I

• Function: NC

• Kv value [m_/h]: 11 m_/h

• Max media viscosity [cSt]: 50 cSt

• Max. test pressure [bar]: 20 bar

• Max. test pressure [psig]: 290 psig

• Max. Working Pressure [bar]: 12.4 bar

• Max. Working Pressure [psig]: 180 psig

• Media recommendations: Drinking water (Max. 90 °C), Hot water (Max 140 °C), Steam, Technical water

• Media tolerance comments: Neutral media

• Steam Max: 4 Bar

• Temperature: Coil dependent

• Medium temperature range [°C] [Max]: 120 °C

• Medium temperature range [°C] [Min]: -10 °C

• Medium temperature range [°F] [Max]: 248 °F

• Medium temperature range [°F] [Min]: 14 °F

• Number of ways: 2/2

• Open/close equalizing orifice: Optional Equalization orifice

• Operation: Servo-operated (diaphragm)

• Orifice size [mm]: 25 mm

• Orifice size fraction [in]: 1 in

• Packing format: Multi pack

• Parts Program name: EV220B 15 - 50

• Product accessories: Solenoid valve accessories

• Product group: Solenoid valves

• Product name: Solenoid valve

• Quantity per packing format: 12 pc

• Seal Material: EPDM

• Serviceable: Solenoid valve spare parts

• Specification key: EV220B 25B N 1E NC000

• Type: EV220B

• Type designation: EV220B 25

UPC:

• GTIN: 5702423031849
