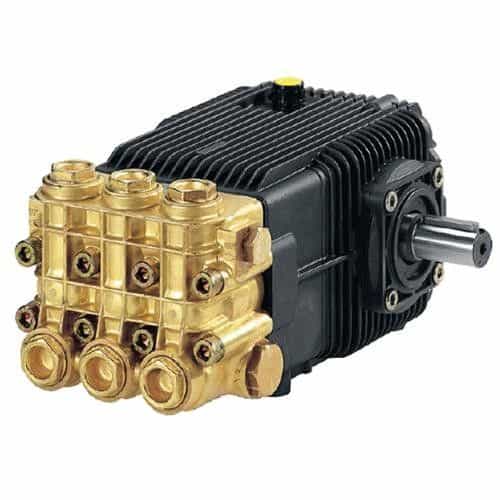

AR North America XWAM8G35N Brass Housing 8 GPM Plunger Pump - 3500 PSI
Brand:
Mfr. Model #:
XWAM8G35N
KR Part #:
ARXWAM8G35N
Weight:
36.80 lbs
Availability:
3
Low Inventory Get It Today
Die-cast body plunger pump with a forged brass head and ceramic plungers. 8 GPM, 3500 PSI, 3/4" inlet, 3/8" outlet.
Technical Specifications
Stroke: 19.8 millimeter
Shaft Diameter: 24 millimeter
RPM: 1750
Max Temperature: 140 degrees F
Max PSI: 3500
Max GPM: 8
Inlet Port: 3/4 inch
Crankcase Capacity: 32 ounce
Bore: 20 millimeter
Product Description
3500 PSI Industrial Use Plunger Pump
The AR North America XWAM8G35N plunger pump is useful for a variety of different high-pressure washing applications. Its die-cast design, forged brass head, and durable inner components make it an excellent choice for industrial and commercial use.
Part of the XWAM Series of pumps, the XWAM8G35N model has a max flow rate of 8 gpm and a max pressure of 3500 PSI. This quality plunger pump has a 3/4" female inlet, a 3/8" female outlet, and a 32 oz. oil capacity.
Specifications:
- 8 GPM maximum flow rate
- 3500 PSI maximum pressure
- 1750 RPM
- 20mm bore diameter
- 19.8mm stroke
- 3/4" female inlet
- 3/8" female outlet
- 140° Fahrenheit maximum temperature
- 32 oz. oil capacity
- 24mm solid shaft
- Crankshaft ID Stamp: 1
Features:
- Forged brass manifold
- Machined brass valves
- Specially designed Ultra-Form cages
- High-pressure "V" packing style Buna-N seals
- Low-pressure "U" Buna-N seals
- Oversized taper roll bearings
- Precision die-cast bearing support, crankcase, and rear covers
- Stainless steel plunger rods
- Oversized precision ground and hardened steel rod pins
- One-piece connecting rods
- Forged, precision-ground crankshaft
- Triple lip oil seals and o-rings
