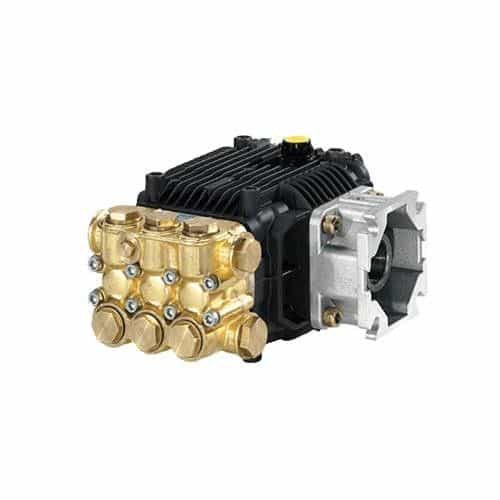

Name: AR North America XMV3G25D-F25 Triplex Plunger Pump - 3.0 GPM, 2700 PSI
Brand: AR North America
SKU: ARXMV3G25D

Brand:

AR North America

Mfr. Model #:

XMV3G27D-F25

KR Part #:

ARXMV3G25D

Weight:

15.00 lbs

MSRP

~~$720.02~~

Now Only!

$295.38

Manuals

XMV3400Breakdown.pdf

XMV3G25D-F25.pdf

Frequent Questions

Horizontal gas engine triplex plunger pump. Features die-cast construction, brass head, solid ceramic plungers and water tight valve cages to provide for a longer life of your pump. Generates up to 3.0 GPM, with maximum pressure up to 2700 PSI.

More Info...

Technical Specifications

Max GPM: 3

RPM: 3400

Max PSI: 2500

Inlet Port: 1/2 inch

Max Temperature: 140 degrees F

Bore: 15 millimeter

Stroke: 7.6 millimeter

Shaft Diameter: 19.05 millimeter

Crankcase Capacity: 14.6 ounce

Product Description

AR North America 3400 RPM Hollow Shaft Pump

Durable horizontal gas engine triplex plunger pump features a die-cast body and brass head. Thick solid ceramic plungers provide for long life for internal components, while anodized precision cast cooling fins optimize heat dissipation. One-piece connecting rods are made of special alloy aluminum, oversized for strength and load disbursement. Oversized needle bearing on the drive sides and ball bearings on the non-drive side for proper shaft alignment. Water tight valve cages allow positive seating provide longer life of your pump.

Features
