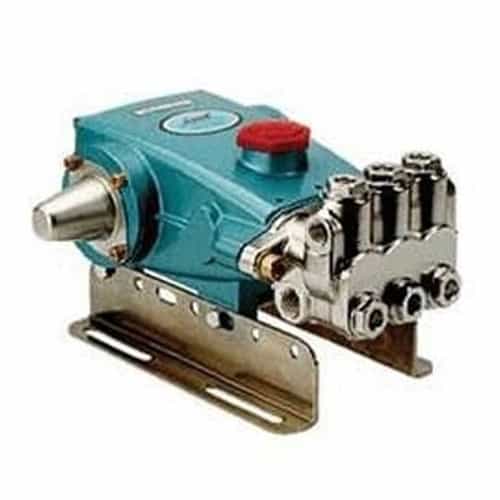

CAT Pumps 340.3000 High Temperature Pump - 4 GPM, 1800 PSI
Brand:
Mfr. Model #:
340.3
KR Part #:
PU00340.3000
Weight:
22.75 lbs
The CAT 340 brass manifold pump is one of the most popular pumps for self-service bays! 5 Frame triplex piston pump perfect for high temperature applications. Up to 4.0 GPM, at pressures up to 1800 PSI. Please note that brackets are not included with this pump.
NOTE: This pump does NOT come with oil
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 18 oz.
Inlet Port: 1/2 inch
Max GPM: 4
Max PSI: 1800
Max Temperature: 160 degrees F
RPM: 1725
Shaft Diameter: 20 millimeter
Stroke: 12 millimeter
Product Description
Powerful High-Temp Car Wash Pump
The CAT 340.3000 5 Frame triplex piston pump is perfect for use in car wash bays! Triplex Uniflow design provides continuous forward liquid flow for smooth operation. Chrome-plated 304 Stainless cylinders and sleeves provide long operating life with mild liquids (5PH-9PH). High-temp seals provide greater temperature resistance for use in hot-water applications.
Dimensions: 11.73" x 10.0" x 5.24"
Features
- Uniflow design features mechanically actuated inlet valve for continuous forward flow and strong suction
- 304SS Valve assemblies
- Alternate crankshaft strokes offers flexibility with belt, clutch, or direct-drive installation
- Solid shaft
- High-temperature seals
- Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
Specifications
- Maximum Flow: 4.0 GPM
- Pressure Range: 100 - 1800 PSI
- Speed: 1725 RPM
- Max liquid temp: 190° F
- Inlet port: (2) 1/2" NPTF
- Discharge ports: (2) 3/8" NPTF
