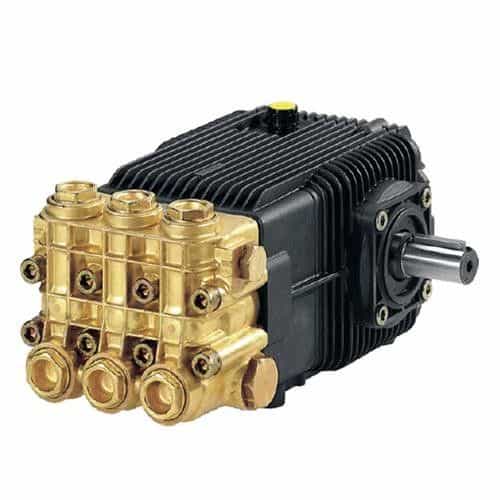

AR North America XWAM7G40N Brass Housing 7 GPM Plunger Pump - 4000 PSI
Brand:
Mfr. Model #:
XWAM7G40N
KR Part #:
ARXWAM7G40N
Weight:
38.00 lbs
Usually Ships in 2 Weeks
Die-cast body plunger pump with a forged brass head and ceramic plungers. 7 GPM, 4000 PSI, 3/4" inlet, 3/8" outlet.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 32 ounce
Inlet Port: 3/4 inch
Outlet Port: 3/8 inch
Max GPM: 7
Max PSI: 4000
Shaft Diameter: 24 millimeter
Stroke: 17.2 millimeter
RPM: 1750
Max Temperature: 140 degrees F
Product Description
4000 PSI Industrial Use Plunger Pump
The AR North America XWAM7G40N plunger pump is useful for a variety of different high-pressure washing applications. Its die-cast design, forged brass head, and durable inner components make it an excellent choice for industrial and commercial use.
Part of the XWAM Series of pumps, the XWAM7G40N model has a max flow rate of 7 gpm and a max pressure of 4000 PSI. This quality plunger pump has a 3/4" female inlet, a 3/8" female outlet, and a 32 ounce oil capacity.
Specifications:
- 7 GPM maximum flow rate
- 4000 PSI maximum pressure
- 1750 RPM
- 20mm bore diameter
- 17.2mm stroke
- 3/4" female inlet
- 3/8" female oulet
- 140° Fahrenheit maximum temperature
- 32 oz. oil capacity
- 24mm solid shaft
- Crankshaft ID Stamp: 2
Features:
- Forged brass manifold
- Machined brass valves
- Specially designed Ultra-Form cages
- High-pressure "V" packing style Buna-N seals
- Low-pressure "U" Buna-N seals
- Oversized taper roll bearings
- Precision die-cast bearing support, crankcase, and rear covers
- Stainless steel plunger rods
- Oversized precision ground and hardened steel rod pins
- One-piece connecting rods
- Forged, precision-ground crankshaft
- Triple lip oil seals and o-rings
