Water Pump Pressure Switch

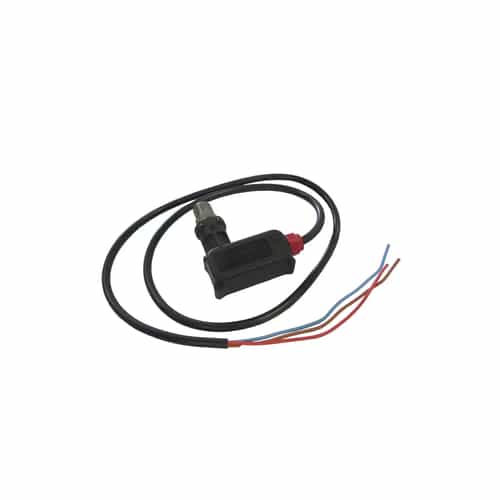

The right water pressure switch will help improve the efficiency and day-to-day operations at your car wash. Giant Pumps makes a range of pressure switches such as the 23176A-4000. This is a brass pressure switch with a maximum pressure of 3650 PSI and an actuation pressure of 640 PSI. The maximum temperature rating measures 165 degrees Fahrenheit.

The switch features a 3/8" MBSP inlet port. Available electrical connections include normally open with the brown wire, common with the red wire, and normally closed with the blue wire. The main purpose of the switch is to translate water pressure to a micro switch. The switch controls on and off functions for burners, clutches, and other low amperage devices.

Pressure Switch Features:

• Max PSI: 3650
• Inlet Port: 3/8" MBSP
• Max Temperature: 165 F

What Does a Pressure Switch Do on a Pump?

A pressure switch plays a critical role in pump systems by controlling the start and stop operations based on water pressure levels. It acts much like a monitoring device, continually gauging the pressure in the system. When the water pressure falls below a specified threshold, the pressure switch activates, signaling the pump to turn on and increase the system's pressure. Conversely, once the system reaches the maximum pressure setting, the switch triggers the pump to shut off, ensuring that the pressure does not exceed safe levels. This automatic regulation helps maintain consistent water flow, preventing potential damage caused by over-pressurization.
