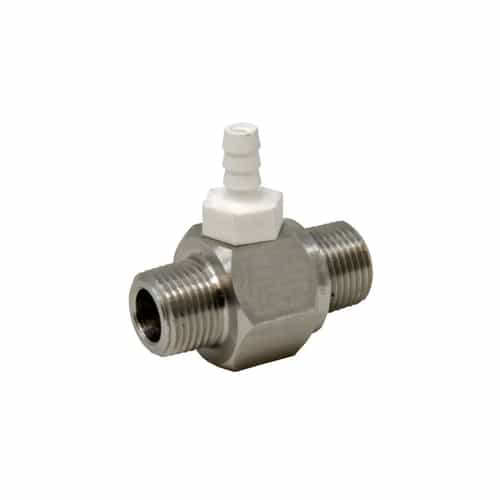

General Pump 100174.11 Fixed Chemical Soap Injector- 250 PSI, 9 GPM
Brand:
Mfr. Model #:
100174.11
KR Part #:
GPP100174.110
Weight:
0.50 lbs
Usually Ships in 2 Weeks
The 100174.11 is a fixed chemical injector from General Pump with a 250 PSI maximum and a flow rate of 6-9 GPM.
Technical Specifications
Max PSI: 250
Max GPM: 9
Min GPM: 6
Max Temperature: 190 F
Inlet Port: 3/8"
Outlet Port: 3/8"
Orifice: 2.8mm
Product Description
Chemical Soap Injector
The General Pump 100174.11 is a fixed chemical soap injector using a 304 stainless steel body and a 316 stainless steel nozzle. Inlet and outlet ports each measure 3/8" NPT-M. The injector uses a 2.8mm orifice along with a 1/4" hose barb.Specifications to know include a pressure rating of 250 PSI and a flow rate of 6-9 GPM. There are other favorable features in place as well such as an EDPM O-Ring, a Kynar hose barb, and a Teflon ball. This injector can be used at a peak operating temperature of 190 degrees Fahrenheit.
Fixed Chemical Injector Specifications:
- Max PSI: 250
- GPM: 6-9
- Max Temperature: 190 F
- Inlet Port: 3/8" NPT-M
- Outlet Port: 3/8" NPT-M
- EPDM O-Ring
- Kynar Hose Barb
- Teflon Ball
- Orifice: 2.8mm
