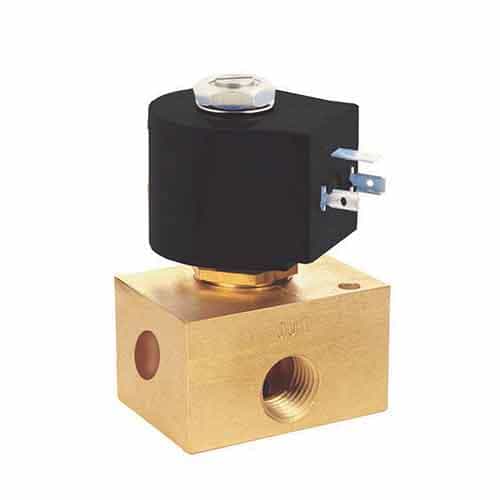

Dema 492M1.8.3D Single Station Non-Metering Solenoid Block - 24V DIN
Brand:
Mfr. Model #:
492M1.8.3D
KR Part #:
SODM1NM-DIN
Weight:
0.25 lbs
Usually Ships in 2 Weeks
1 station brass manifold block with 24 volt DIN electrical connection. This manifold solenoid valve is designed for use with water, air, light oil, noncorrosive and non-explosive liquids. 1/4" NPT pipe size, 150 PSI.
Prop 65
Technical Specifications
Voltage AC: 24
Max PSI: 150
Inlet Port: 1/4 inch
Product Description
1 Block Solenoid Manifold
This manifold valve has a maximum pressure of 150 PSI. With direct acting valves, such as this valve, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate. The block is made with brass and has a single station.
- 1 station
- Brass body material
- 1/4" NPT pipe size
- 150 PSI maximum pressure
- 24 volt
- DIN connection
- CV flow factor # .27
- GPM at 60 PSI: 2.09
