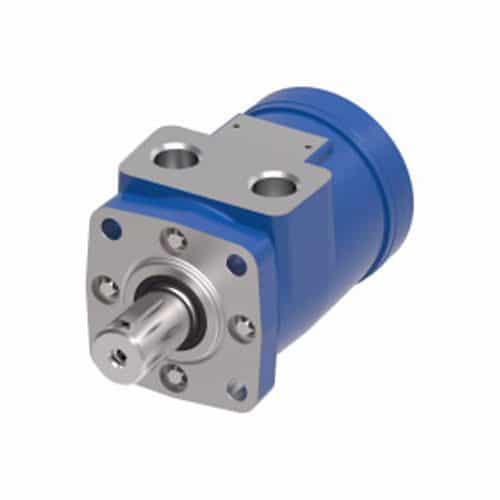

Char-Lynn 101-1001-009 Motor

The Char-Lynn 101-1001-009 is a powerful hydraulic orbital motor from the Eaton Char-Lynn H-Series. Ideal for medium duty applications, this low speed and high torque motor has a maximum speed of 969 RPM and a 2.8 cubic inch per revolution displacement. It boasts advanced spool valve technology and state-of-the art georotors. Direction of the shaft rotation can be easily and smoothly controlled throughout the motor's speed range. Costly mechanical components can be eliminated as the 101-1001-009 can be used a direct drive motor for your equipment.

101-1001-009 Specifications Overview

• Speed: 969 RPM (1,100 intermittent)
• Maximum Flow Rate: 12 GPM
• Output Torque: 650 in-lbs
• Port Size: 1/2" NPT-F dryseal pipethread
• Maximum Pressure: 1800 PSI (2,400 intermittent)
• Displacement: 2.8 CID
• Main Port Style: Sideport aligned
• Keyed Shaft Size: 1" diameter hollow shaft x 1/4" straight
• Mounting Type: "B" 4-bolt square mounting flange
• Motor Size: 45
• Orbital Gear-Wheel Set: Standard
• Orbital Gear-Wheel Set Type: Georotor
• Shaft Key: Woodruff keyway
• Shaft Seal: NBR
• Valve System: Spool valve
• Series: H-Series
• Char-Lynn full SKU item #101-1001-009

Please note: intermittent operation refers to running the pump no more than 10% of each minute.

Features and Benefits

• Time-tested Char-Lynn drive set
• 3 moving components (gerotor-star, drive, and shaft)
• Optimized drive running angle
• 3-zone pressure design (inlet, return and case)
• High efficiency
• Powerful compact package
• Extended leak-free performance

Common Uses for the Char-Lynn 101-1001-009

• Automatic car wash brushes
• Conveyors
• Farming augers
• Harvesters
• Seeders
• Food processing
• Railroad maintenance equipment
• Machine tools
• Industrial sweepers and floor polishers
• Saw mill works
• Turf equipment
• Concrete and asphalt equipment
• Skid steer attachments
• Winch and steering
• Marine hauling

Important Notes for Safe and Effective Use

• Simultaneous maximum torque and maximum speed NOT recommended
• Recommended Fluids: Premium quality, anti-wear type hydraulic oil
• Recommended Operating Temperature: -30° Fahrenheit to 180° Fahrenheit
• Recommended Filtration: Per ISO cleanliness code 4406, level 20/18/13
• Thermal Shock Warning: Do not operate the motor with fluid that is 70° F or more above the motor temperature
• Minimum Delta Pressure Warning: Motors must not run with equal inlet and outlet pressure 50 PSID minimum delta pressure between motor ports is required at all times (expect when switching direction of rotation)
