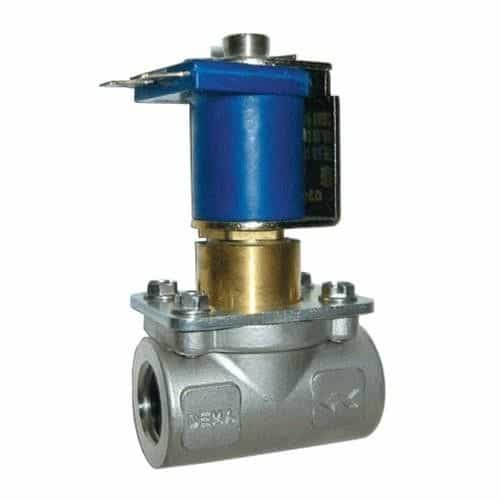

Dema O463PS.3 Stainless Steel Normally Open Diaphragm Valve - 3/8in. Ports, 24VAC Spade Coil
Brand:
Mfr. Model #:
O463PS.3
KR Part #:
SOD0463PS24
Weight:
1.02 lbs
In Stock
This normally open, mini diaphragm solenoid valve is ideal for weep systems at your car wash facility. Intended for water, air, light oil, and other non-corrosive liquid applications.
Prop 65
Technical Specifications
Max PSI: 150
Voltage AC: 24
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Product Description
Diaphragm Valve with 3/8" Pipe Connections - 125 PSI
This normally open solenoid valve is intended for water, air, light oil, and other non-corrosive liquid applications. The plunger is pulled to the top plug, which opens a small pilot port in the center of the diaphragm plate. This releases pressure on top of the diaphragm and allows incoming pressure to lift it off the large center port. When de-energized, the plunger is pushed from the top plug by a spring and closes the pilot port.
Pipe Size: 3/8"
- CV flow factor #2
- Stainless steel body resists corrosion
- Normally open
- EPDM seal
- 24VAC spade coil
- Maximum pressure 125 PSI
