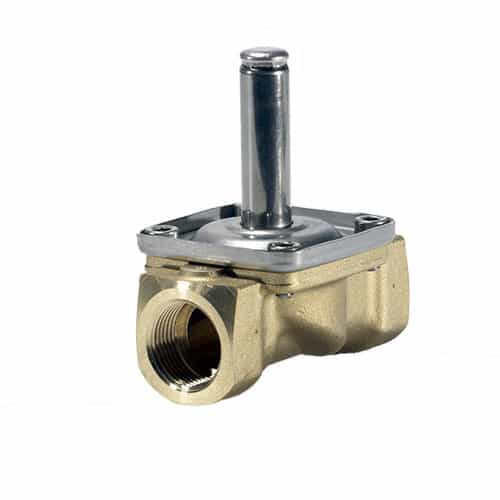

Danfoss 032U6524 Brass 2 Way Servo-Operated Solenoid Valve - 3/4 Inch Ports, 142 PSI
Brand:
Mfr. Model #:
032U6524
KR Part #:
DF032U6524
Weight:
1.50 lbs
Call For Availability
Servo operated solenoid valve made by Danfoss. Compatible with 3/4" piping. Tolerates a maximum temperature 212 degrees Fahrenheit and a maximum pressure of 142 PSI.
Note: This is only a valve and does not include a coil.
Technical Specifications
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max Temperature: 212 degrees F
Min Temperature: 32 degrees F
Orifice: 3/4 inch
Product Description
Car Wash Solenoid Valve
Danfoss 032U6524 is a 2-way servo operated solenoid valve that is compatible with compressed air, oil, water and gas applications. Made with a brass construction. Features 3/4" NPT piping connections. Orifice measures 18 mm in diameter.
Specifications:
- Actuator: B
- Actuator Size: 13.5 mm
- Actuator Size [in]: 0.53 in
- Actuator System [mm]: 13.5 mm
- Ambient Temperature Max. [°C]: 50 °C
- Ambient Temperature Max. [°F]: 122 °F
- Approval: C UL US LISTED
- Body Material: Brass
- Connection Internal/External: Internal
- Connection Material: Brass
- Connection Size [In]: 3/4
- Connection Standard: ANSI/ASME B1.20.1
- Connection Type: NPT
- Cv Value [gal/min]: 6.95 gal/min
- Differential Pressure [BAR] [Max]: 9.971 bar
- Differential Pressure [BAR] [Min]: 0.3 bar
- Differential Pressure [PSI] [Max]: 142 psi
- Differential Pressure [PSI] [Min]: 4.351 psi
- Est. Time to Close, Water [ms]: 500 ms
- Est. Time to Open, Water [ms]: 200 ms
- Flow Direction: Single-Flow
- Flow Direction Indicator: Embossed 1-Way Arrow
- Fluid Group: I
- Function: NC
- Kv value [m_/h]: 6 m_/h
- Max Media Viscosity [cSt]: 50 cSt
- Max. Test Pressure [Bar]: 16 Bar
- Max. Test Pressure [PSIG]: 232 PSIG
- Max. Working Pressure [Bar]: 9.8 Bar
- Max. Working Pressure [PSIG]: 142 PSIG
- Media Recommendations: Compressed Air, Oil, Water, Gases
- Media Tolerance Comments: Neutral Media Water at max. 60°C/140 °F
- Medium Temperature Range [°C] [Max]: 100 °C
- Medium Temperature Range [°C] [Min]: 0 °C
- Medium Temperature Range [°F] [Max]: 212 °F
- Medium Temperature Range [°F] [Min]: 32 °F
- Number of Ways: 2/2
- Operation: Servo-operated (diaphragm)
- Orifice Size [mm]: 18 mm
- Orifice Size Fraction [In]: 3/4 In
- Packing Format: Multi Pack
- Parts Program Name: EV220B 6 - 22
- Product Accessories: Solenoid Valve Accessories
- Product Group: Solenoid valves
- Product Name: Solenoid valve
- Quantity Per Packing Format: 12 Pc
- Seal Material: FKM
- Serviceable: Solenoid Valve Spare Parts
- Specification Key: EV220B 18B N 34F NC000
- Type: EV220B
- Type Designation: EV220B 18
