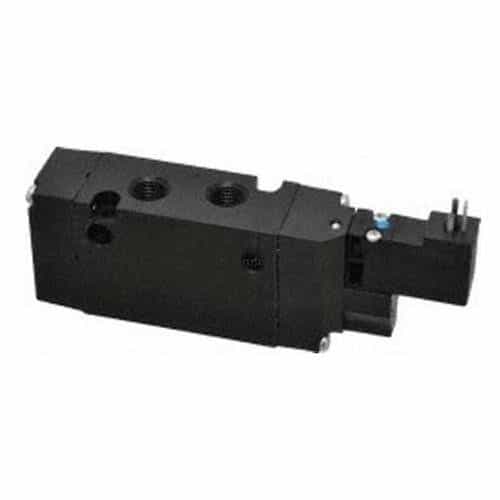

Parker B511ADH53C Air Control Valve B5 Series, Single Solenoid, 4 Way, 2 Pos, 120 VAC, 1/4" NPT
Brand:
Mfr. Model #:
B511ADH53C
KR Part #:
PV200
Weight:
1.22 lbs
Availability:
4
Low Inventory Get It Today
This is a 4-way, 2-position solenoid valve. Hard coated override resists harsh environments. Heavy duty locking mechanism maintains position.
Product Description
Air Control Valve
This solenoid valve features positive mechanical contact of the override knob assures actuation of valve, however, knob does not move during normal cycling.
Specifications:
- B5 - 1.4 Cv; 1/4", 3/8 ports
- Operating pressure: Vacuum to 145 PSIG
- Solenoids: 1.2 watt, 15mm 3-Pin (DIN 43650C), Quick connect plug with flying leads, 12VDC to 240VDC Heavy Duty Conduit, Grommet
Features:
- Positive mechanical contact of the override knob assures actuation of valve, however, knob does not move during normal cycling
- Hard coated override to resist harsh environments
- Override return spring is stainless steel, for harsh environments
- Heavy duty locking mechanism to maintain position
