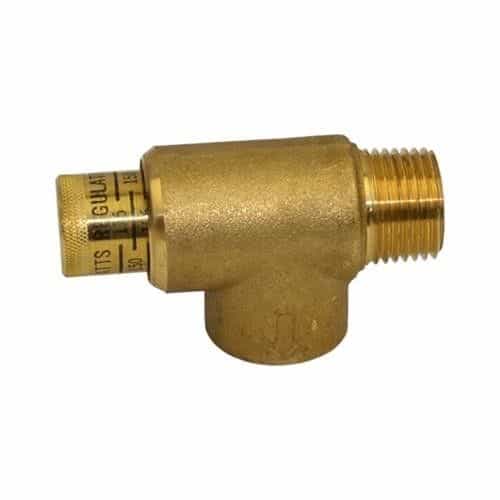

Watts LF530C Lead Free Brass Calibrated 90 Degree Pressure Regulator - 50 to 175 PSI, 1/2 Inch MxF NPT Ports
Brand:
Mfr. Model #:
1/2 LF530C (0556035)
KR Part #:
RE530
Weight:
0.42 lbs
GTIN:
098268435191
Availability:
1
Low Inventory Get It Today
A pressure regulator for use air, oil and water applications. Features a pressure relief setting at 150 PSI. Made with lead free brass.
Technical Specifications
Max PSI: 175
Min PSI: 50
Max Temperature: 180 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
Adjustable Regulator
This calibrated pressure regulator is engineered for applications involving water, oil and air. Constructed with a 90-degree lead-free body made with brass. Equipped with a 1/2-inch male inlet and a 1/2-inch female outlet. Designed to withstand a maximum temperature of 180 degrees Fahrenheit. Pressure settings range from 50 to 175 PSI.
Specifications:
- Body Material: Lead Free Brass
- Brand: Watts
- Buy American Act Compliant: YES
- EAN: 098268435191
- GPM-When Relieved: Does Not Apply to Product
- Inlet Connection Size: 1/2 IN
- Inlet Connection Type: Male Threaded
- Inlet Thread Type: NPT
- Lead Free: YES
- Maximum Temperature-Fahrenheit: 180
- Maximum Working Pressure: PSI 300
- Outlet Connection Size: 1/2 IN
- Outlet Connection Type: Female Threaded
- Outlet Thread Type: NPT
- Part Number: 0556035
- Pressure Range: 50 to 175 PSI
- Pressure Relief Setting-PSI: 150
- Protection Type: Pressure
- Series: LF530C
UPC:
- GTIN: 098268435191
Features:
- Adjustable range 50 to 175 psi
- All stainless steel springs
- Lead free brass body construction
- Maximum temperature 180-degree F
