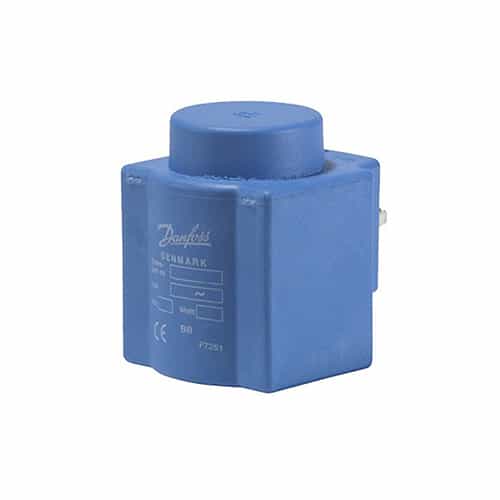

Danfoss Valves 042N7457 Coil - 24 VDC, 6.3 mm x 0.8 mm DIN Spade Connector
Brand:
Mfr. Model #:
042N7457
KR Part #:
DF042N7457
Weight:
0.25 lbs
Call For Availability
A new coil for 24 VDC solenoid valves. This coil is equipped with a 6.3 mm x 0.8 mm DIN spade connector. Its housing is blue.
Product Description
24 VDC Coil for Solenoid Valves
Danfoss Valves 042N7457 is a replacement coil for 24-volt DC solenoid valves. This coil features a 6.3 mm x 0.8 mm DIN spade connector. Made with a blue housing. It handles a maximum temperature of 122 degrees Fahrenheit. The actuator measures 13.5mm.
Specifications:
- Manufacturer: Danfoss Valves
- Product Number: 042N7457
- EAN: 5702423029211
- Actuator size: 13.5 mm
- Ambient temperature range [°C] [Max]: 50 °C
- Ambient temperature range [°C] [Min]: -40 °C
- Ambient temperature range [°F] [Max]: 122 °F
- Ambient temperature range [°F] [Min]: -40 °F
- Coil connection: DIN Spade
- Coil design standard: VDE 0580
- Coil fastening: Nut and snap
- Coil winding insulation class: Class H to IEC 85
- Color: Blue
- Compliance: EN 60730-1
- Duty rating: Continuous
- Electrical connection: DIN Spade
- Electrical connection size: 6.3 mm x 0.8 mm
- Electrical connection standard: EN175301-803
- Electrical connector: 3 x spades
- Enclosure rating IP: IP00
- Packing format: Multi-pack
- Power consumption [W] DC: 16 W
- Product accessories: Solenoid coil accessories
- Product Group: Solenoid valves
- Product name: Solenoid coil
- Product type: BB024D
- Rel. Humidity [% RH] [Max]: 97 %
- Rel. Humidity [% RH] [Min]: 0 %
- Rel. Humidity conditions: Non-condensation
- Serviceable: No
- Spare part number: 042N7457
- Supply voltage [V] DC: 24 V
- Type designation: BB024D
