47 GPM - Diaphragm Pump

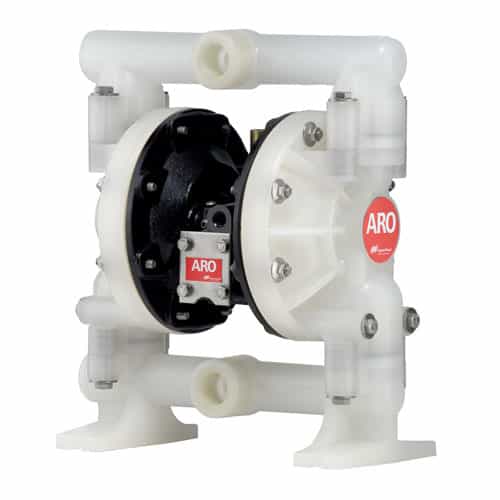

Aro 6661AJ-3EB-C is an air-operated diaphragm pump designed with ease of use in mind. The diaphragm is made with Santoprene and the housing is aluminum. It produces a maximum flow rate of 47 GPM and it endures a maximum pressure of 120 PSI. The pump is equipped with Aro's patented 'Unbalanced' air valve that delivers stall-free operation. Plus, it is designed to make service easy.

Specifications:

• Manufacturer: Aro
• Product Number: 6661AJ-3EB-C
• Item: Diaphragm Pump
• Material - Diaphragm: Santoprene
• Pump Application: Air Operated
• Inlet/Outlet Connection Type: NPT (1-Piece Manifold)
• Material - Housing: Aluminum
• Solids Handling: 1/8 in
• Material - Balls: Santoprene
• Material - Seats: Polypropylene
• Max Air Inlet Pressure: 120 PSI (8.3 bar)
• Max Flow: 47 GPM (177.9 lpm)
• Max Fluid Pressure: 120 PSI (8.3 bar)
• Max Temperature: 200°F (93.3°C)
• Noise Level: 64.5 dB(A)
• Displacement: Positive Displacement

Features:

• Robust construction with thick-walled injection molded fluid casings and cast iron or aluminum center sections to withstand tough industrial applications.
• Efficiency - Motor design delivers optimum air efficiency
• Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
• Versatility - Multiple porting options for your application needs - Available in flanged, threaded, or 3 piece manifold configurations
• Environmentally Sound - Bolted construction for leak-free fluid handling
• Serviceability - Easy access to ball checks and fluid caps for maintenance and repairs
