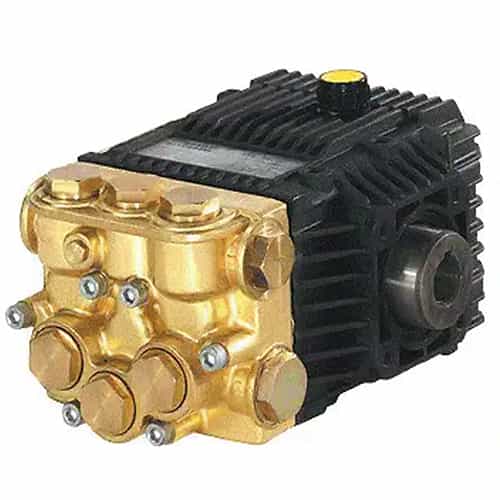

3 GPM Pressure Washer Pump

AR North America XTA3G19E-F8 is a pump designed for moderate-pressure washing applications. It features anodized precision-cast cooling fins for maximum heat dissipation. Ceramic plungers are constructed with a thick construction to enhance their longevity. The pump produces a maximum flow rate of 3 GPM and a discharge pressure of 1900 PSI.

• Specifications:
• Manufacturer: AR North America
• Model Number: XTA3G19E-F8
• Pump Type: Hollow Shaft Pump
• Shaft Size: 5/8″ Hollow
• Maximum RPM: 1750
• Maximum GPM: 3.0
• Maximum Pressure: 1900 PSI
• Maximum Horsepower Requirements: 4.0 BHP
• Maximum Fluid Temperature: 140 F
• Bore Diameter: 18mm
• Stroke: 9.6mm
• Inlet Thread: 1/2″-14 BSPP-F
• Discharge Thread: 3/8″-19 BSPP-F
• Oil Capacity: 10 oz.
• Shaft Diameter: .625 in / 15.88 mm
• Material: Brass
• Features:
• Die-cast bodies
• Brass head
• Special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized needle bearing on the drive side and ball bearings on the non-drive side ensure proper shaft alignment and maximum life
• Specially designed valve cages
• Ultra-Form is impervious to water absorption and provides positive seating and extended life
• One-piece connecting rods are made with a special alloy that handles higher pressures and are oversized for strength and load disbursement.
