Versa-Matic E8KP5BKK9 3/8" Pump - Kynar Body, PTFE Diaphragm
Brand:
Mfr. Model #:
E8KP5BKK9
KR Part #:
VME8KT
Weight:
4.50 lbs
GTIN:
814338026454
Out of stock - Pre-Order Now!
- Can be mounted in any position (vertical, horizontal, upside down)
- Inlet/Discharge manifolds can be rotated to meet your mounting needs
- Available in Polypropylene or Kynar wetted sections and fitted with Santoprene or PTFE for superior chemical resistance
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 6.8
Max PSI: 100
Product Description

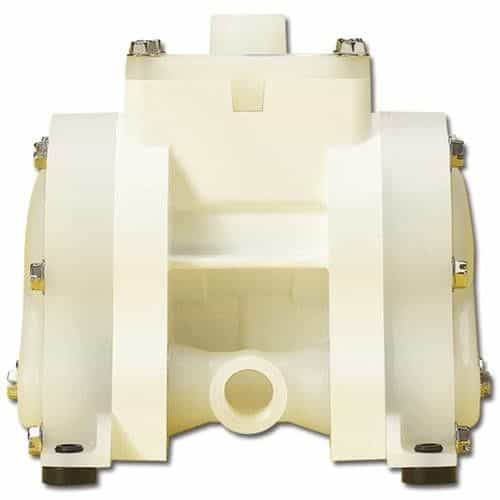

E8KP5BKK9 Versa-Matic Diaphragm Pump
| Check Type | Ball Valve |
| Depth | 5.67" (144 mm) |
| Diaphragm | Bonded PTFE |
| Displacement | 0.004 (G), 0.017 (L) |
| Height | 5.32" (135 mm) |
| Max Air Consumption | 8.5 (CMPH), 5 (SCFM) |
| Max Discharge Pressure | 6.9 BAR (100 PSI) |
| Max Flow Rate | 6.8 GPM (26 LPM ) |
| Max Temperature | 220°F (105°C) |
| Max Air Inlet Pressure | 6.9 BAR (100 PSI) |
| Min Temperature | 40°F (4°C) |
| Non-wetted Material | Polypropylene |
| Port Size | 0.375" (9.52 mm) |
| Seat Material | Kynar |
| Solids Handling | 0.1" (2.25 mm) |
| Width | 5" (127 mm) |
