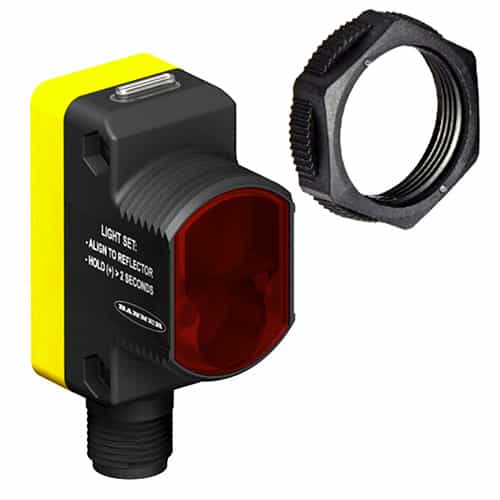

30 mm Barrel Emitter

This sensor is made with thermoplastic housing. Features a 698 ft sensing range. Engineered to exceed NEMA 6P (IP67) ratings making this sensor an excellent choice for wash-down environments. Input for power is compatible with 10-30 VDC. Unique lens design sheds water and debris reducing lens contamination. Lens is created with a material engineered to survive impacts, washdowns and harsh cleaning chemicals.

Specifications:

• Cable Length (ft.): 30
• Sensing Beam: Infrared LED
• Sensing Mode (General) : Opposed
• Sensing Mode (Detailed): Emitter
• Housing Style: Rectangular w/M30 Mount
• Primary Housing Material: Thermoplastic
• Max Sensing Distance: 213000 (mm) 8385.827 (inches) 698 (feet)
• Outputs: N/A
• Power Supply/Supply Voltage: 10-30 V dc
• Connection: Cable
• Quick Disconnect Type: No QD
• Operation: N/A
• Min Op. Temp. (°C): -20
• Max Op. Temp. (°C): 60
• Output response time (ms): 30
• Special Feature: Intrinsically Safe: No
• Special Feature: Remote Teach: No
• Special Feature: Water Detection: No
• Sensing Beam Wavelength: 875
• Delay at Power-up (ms): 100
• Repeatability (µs): 5000
• Number of Pins: 4
• IP Rating: IP67
• NEMA Rating: NEMA 6P
• Max Op. Relative Humidity [%]: 95% @ 50°C
• Lens Material: Zeonex
• Adjustments: N/A
• Barrel Diameter (mm): 30
• Indicator: LEDs
• Opposed Mode Emitter/Receiver: Emitter
• Feature: Timing (Hold/Delay): No
• Feature: Encapsulated: Yes
• Feature: Hazardous Area: No
• Feature: Audible: No
• Feature: Chemical Resistant: No
• DeviceNet: No
• IO Link: No

Features:

• Infared beam with high excess gain Ñ range of over 213 m (700 ft)
• Excellent noise immunity
• Excellent for applications where high sensing power is required due to long sensing range or contamination on lenses
• Excellent optical performance throughout the sensing range
• Easy two frequency selection to help prevent crosstalk
• Easy-to-read operating status indicators with bargraph display
• Bipolar discrete outputs, PNP and NPN
• Models available with 2 m or 9 m (6.5 ft or 30 ft) cable or quick-disconnect fitting
• Tough ABS housing is rated IEC IP67; NEMA 6P; QD models are washdown tested to DIN 40050-9 (IEC IP69K)
• Unique water/debris-shedding lens design reduces lens contamination; lens
  material survives impact, washdown and cleaning chemicals
• Encapsulated electronics
• Compact housing Ñ mounting versatility via popular 30 mm threaded barrel or side-mount
