Giant Pump P205LE1B Triplex Plunger Pump, 0.9 GPM, 3450 PSI, Left Shaft, NEMA 56C Flange, Aluminum Coupler
Brand:
Mfr. Model #:
P205LE1B
KR Part #:
PUP205LE1B
Weight:
11.70 lbs
Temporarily Unavailable

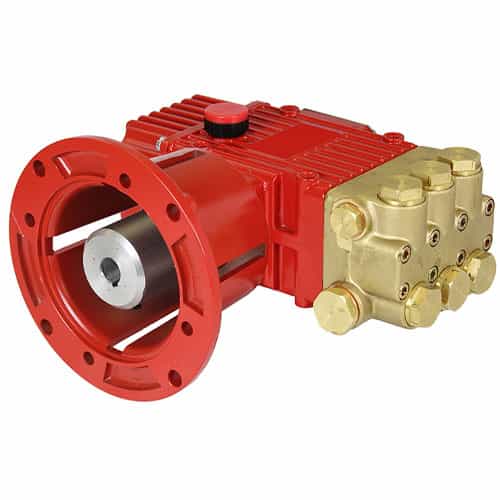

This triplex ceramic plunger pump features solid ceramic plungers and stainless steel valves for durability. NEMA 56C electric motor flange for direct drive, 5/8" aluminum coupler. Left side drive. Note: pump features left side shaft, right hand pump shown in picture.
Technical Specifications
Max GPM: 0.9
Max PSI: 2500
Max Temperature: 160 degrees F
RPM: 3450
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 12 millimeter
Stroke: 3.4 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 7.5 oz
Product Description
Low-Flow Left Mounted Plunger Pump
The Giant P205LE1B high-pressure pump has a left-side mounted shaft and 12 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 0.9 GPM, a maximum pressure of 2500 PSI. Features NEMA 56C flange for electric motor direct drive, and 5/8" aluminum coupler. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
@ 1750 RPM
- Max GPM: 0.5 GPM
- Nominal/Intermittent pressure: 2000/2500 PSI
@ 3450 RPM
- Max GPM: 0.9 GPM
- Nominal/Intermittent pressure: 2000/2000 PSI
Common Specs
- Maximum temperature: 160 F
- Plunger diameter: 12 mm
- Stroke: 3.4 mm
- Crankshaft diameter: 24 mm
- Inlet ports: (2) 1/2" BSP
- Discharge ports: (2) 3/8" BSP
- Crankcase oil capacity: 7.5 fl. oz.
- Volumetric Efficiency @ 1750 RPM: 0.94
- Volumetric Efficiency @ 3450 RPM: 0.87
- Mechanical Efficiency @ 3450 RPM: 0.86
- Power required: 4.7/5.9 BHP
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
