Spraying Systems 4010 1/4 Inch MEG Stainless Steel Spray Tip
Brand:
Mfr. Model #:
1/4 IMEG 4010
KR Part #:
SNI4010M4
Weight:
0.05 lbs
Usually Ships in 2 Weeks
A spray nozzle constructed with a stainless steel housing for corrosion resistance. At the rated pressure flow rate is 1 GPM. Equipped with a threaded 1/4" NPT inlet connection.
Product Description

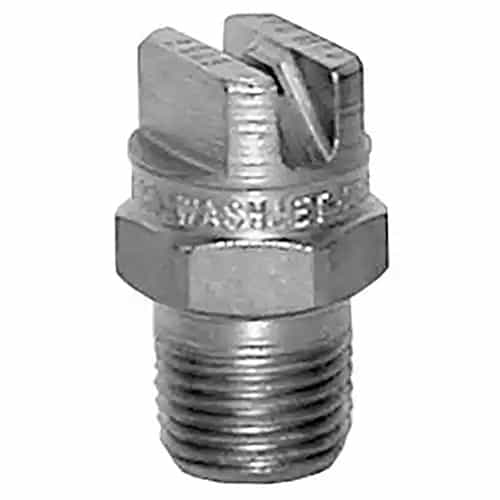

1/4" - WashJet MEG Nozzle
Spraying Systems 1/4MEG-4010 is a WashJet spray nozzle engineered with a flat fan spray pattern for even coverage and distribution of fluid. The nozzle's housing is constructed with hardened stainless steel that endures a maximum pressure of 3000 PSI. Inlet connection measures 1/4 inch with male NPT threading.
Specifications:
- Product Number: 1/4MEG-4010
- Capacity Size: 10
- Inlet Connection Gender: Male
- Inlet Connection Size: 1/4 in
- Inlet Connection Thread Type: NPT
- Inlet Connection Type: Threaded (Male NPT)
- Liquid Flow Rate at Rated Pressure: 1 gpm
- Material Composition: Hardened Stainless Steel
- Model: MEG
- Spray Angle at Rated Pressure: 40°
- Tip Type: MEG
- Product Type: Nozzle
- Design Feature: Has guide vane
Drop Sizes
- Relative Drop Size Group: 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance
- Spray Angle: 40° @ 40 psi
- Spray Angle Range: 40 - 40°
Physical
- Flats: 0.406 in
Product Category
- Brand: WashJet®
- Spray Angle Catalog Code: Standard
Standard Feature
- Body Hex Size: 9/16 in
- Length: 1 in
- Liquid Flow Rate Range: 1 - 8.7 gpm
- Liquid Pressure Range: 40 - 3,000 psi
- Rated Pressure: 40 psi
- Relative Drop Size Range: 500 - 5,000 µm
- Spray Pattern: Flat Fan
