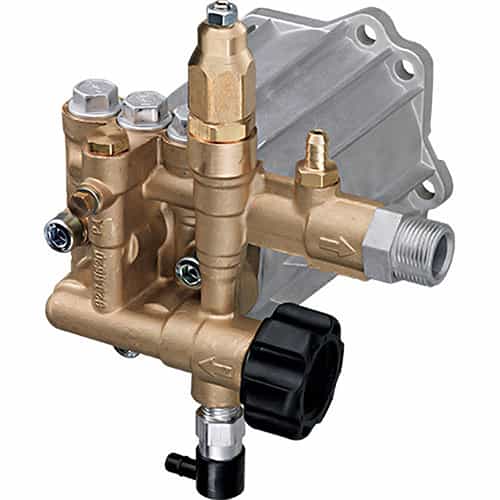

2.5 GPM - Horizontal Plunger Pump

AR North America RMV25G30D-EZ is a direct-drive horizontal plunger pump with a hollow shaft that connects to most 3/4” shaft 4 - 7 HP engines. It includes a built-in pressure control valve and chemical injection system so you can add soaps to your fluid lines. The pump produces a maximum flow rate of 2.5 GPM and a discharge pressure of 3000 PSI.

Specifications:

• Max GPM: 2.5
• Max L/Min: 9.5
• Max PSI: 3000
• MaxBar: 200
• Power EBHP: 5.1
• Bore Dia: 12 mm
• Stroke: 9.7 mm
• Crankshaft ID Stamp: 1
• Inlet: 3/4" GHA
• Outlet: 22mmx1.4 M
• Max Temp: 140° F
• Oil Capacity (oz): 2.2
• RPM: 3400
• Shaft Size: ¾"
• Shaft Version: D
• Shaft Type: Hollow

Features:

• 3-piston alternating volumetric pumps for use on cleaning units
• Can be directly coupled to various types of motors
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in pressed forged brass
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Optional detergent suction system
• Different delivery connections are available
