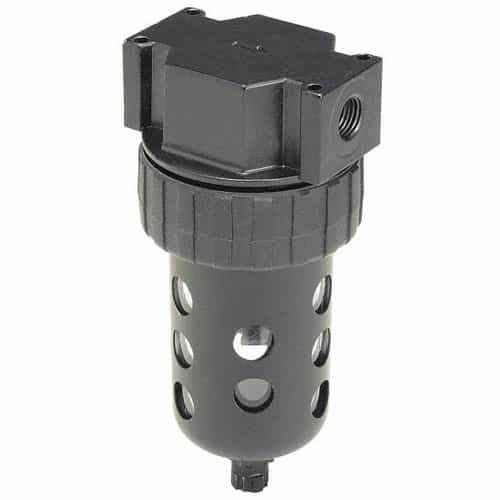

Parker 06F12AC Port 6F Industrial Particulate Filter - 1/4 in. NPT
Brand:
Mfr. Model #:
06F12AC
KR Part #:
REP06F12AC
Weight:
1.60 lbs
Usually Ships in 2 Weeks
Manuals
Particulate filter with a deflector plate and shroud that removes water and dirt from pressured air.
Technical Specifications
Max PSI: 150
Min Temperature: 32 degrees F
Max Temperature: 125 degrees F
Inlet Port: 1/4 inch
Product Description
Pressured Air System Pneumatic Filter
The Parker 06F12AC particulate filter removes dirt, water, and other dangerous particulates from pressured
Features:
- Excellent water removal efficiency
- Unique deflector plate and shroud creates a swirling of the air stream ensuring maximum water and dirt separation
- Large filter element surface guarantees low-pressure drop and increased element life
- Twist drain style
Material Specifications:
- Body: Zinc
- Bowls: Transparent polycarbonate
- Bowl Guards: Steel
- Collar: Plastic
- Deflector, Shroud, and Baffle: Plastic
- Automatic Float Drain Housing: Plastic
- Automatic Float Drain Seals: Nitrile
- Automatic Float Drain Springs and Push Rod: Stainless steel
- 40 Micron Filter Elements: Plastic
- Seals: Nitrile
- Sight Gauge: Polyamide
Operating Information:
- Operating Pressure Range: 0 to 150 PSIG
- Auto Float Drain: 15 to 250 PSIG
- Operating Temperature: 32° to 125° Fahrenheit
- Flow SCFM: 53
- 1/4" FNPT ports
