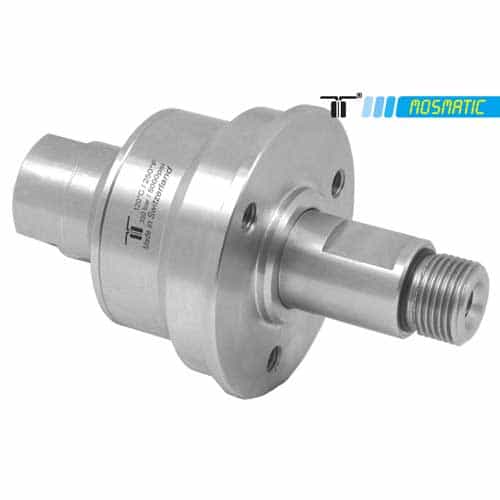

Mosmatic 55.051 Stainless Steel Self-Rotating DYCI Rotary Union Swivel - 1/4 Inch, 5000 PSI, 2000 RPM
Brand:
Mfr. Model #:
55.051
KR Part #:
SWM55051
Weight:
1.50 lbs
This is a swivel that is made with stainless steel. Designed to encourage self-rotation. Contains sealed stainless-steel bearings.
Technical Specifications
RPM: 2000
Max Temperature: 250 degrees F
Max PSI: 5000
Outlet Port: 1/4 inch
Inlet Port: 1/4 inch
Product Description
Surface Cleaner Swivel
This rotary union is designed with weep holes that provide a warning of seal failure. Operates at a maximum pressure of 5000 PSI and 2000 RPM. Swivel is crafted using stainless steel. Fits connections with a G1 1/4-inch NPTF and G2 1/4-inch NPTM threaded diameter. Used in high pressure, self-rotating applications and surface cleaners
Specifications:
- Pressure: DYCI: 5000 PSI
- Temperature: 250 °F
- Max RPM: 2000
- Body: Stainless Steel
- Inner Part: Stainless Steel
- Seal: Carbide
- Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
- Throughput: Ph 3-12
- Medium: Filtered 10 Microns, Compressed Air (290 Psi)
Features:
- Complete Stainless-Steel Construction
- Seal Failure Warning, Through Weep Holes
- Sealed Stainless Steel Bearings
- Carbide Seal System
Applications:
- High Rpm
- High Pressure
- Self-Rotating Applications
- Surface Cleaners
- Parts Washers
Dimensions:
- G1 1/4" NPTF
- G2 1/4" NPTM
- NW 1/4"
- SW1 0.87
- SW2 0.63
- L1 2.28
- L2 1.46
- L3 0.39
- L4 012
- D1 2.36
- D2 1.10
