Clamp-On Pump

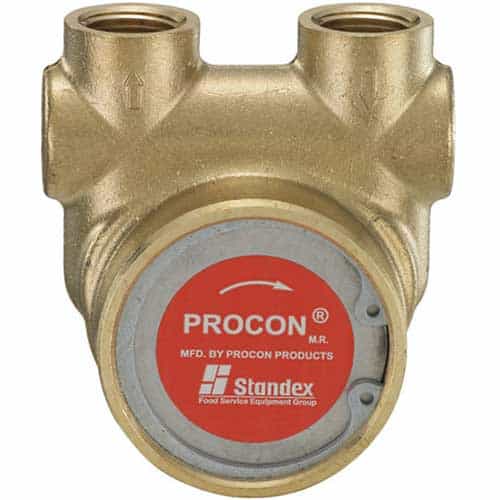

Procon's 102B100F11BA is a clamp-on Series 2 positive displacement rotary vane pump is capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Ideal for use in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump

• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval

• Series: Series 2 Brass

• Mounting and Drive Configuration: Clamp-On with 1143 Bronze Coupling

• Flowrate: 100 GPH

• Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: Standard Clearance

• Valve Type and Configuration: Plastic, Hi Temp-Solid

• Pressure Range: 151-250 PSI - Default Setting 170 PSI

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To .50 HP

• Rotation (Viewed from Nameplate End): Clockwise

• Dry Weight: Approximately 2.5 Lbs.

• Dimensions: 3.56" X 3.49" X 3.86"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 3/8 NPT Inlet and Outlet


Applications:

• Carbonation

• Espresso/Coffee

• Welding

• Cold Carb Circulation

• Reverse Osmosis

• Beer Chillers

• Pesticide Systems

• Solar Applications
