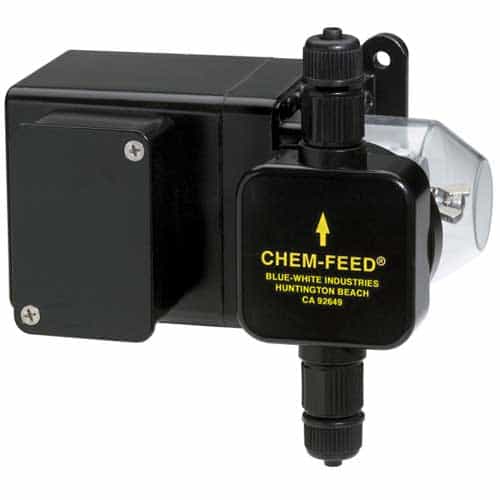

Diaphragm Metering Pump

Crafted with permanently lubricated ball bearings to ensure smooth quiet operation. The pumps head, valve body and fittings, ceramic ball are made with a chemical-resistant PVDF material. Stroke is adjustable from 4-100% allowing for fine tuning of injections and providing greater accuracy.

• Specifications:

• Max. working pressure: 125 psig

• Max. fluid temperature: 130° F

• Max. ambient temperature: 14 to 110° F

• Maximum viscosity: 1,000 Centipoise

• Maximum suction lift: 10 ft. Water

• Output Adjustment Range: 4 - 100% stroke length

• Duty cycle: Continuous

• Enclosure: NEMA type 1 (IP20)

• Operating Voltage: 115VAC/60Hz, 1ph (.74 Amp Maximum)

  • 230VAC/60Hz, 1ph (0.36 Amp Maximum)

  • 220VAC/50Hz, 1ph (.31 Amp Maximum)

  • 24VAC/60Hz, 1ph (3.40 Amp Maximum)

  • 12VDC (3.00 Amp Maximum)

  • 24VDC (1.50 Amp Maximum)

• Power Connection: Junction box for field wiring

• Approx. Shipping Weight: 8 lb. (3.6 Kg)


Features:

• All ball bearings, permanently lubricated gear motor for smooth, quiet, powerful operation

• Double-ball inlet and outlet cartridge type ceramic check valves

• Chemical resistant PVDF pump head, valve body and fittings, ceramic ball

• FKM static seals and TFE/P ball seat O-rings

• No metal springs are used

• Outputs to 516 GPD

• Output pressures to 125 PSI

• Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute. 27: turndown

• PTFE coated EP diaphragm.

• Durable metal epoxy coated construction

• PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen

• Includes 3/8" OD x 1/4" ID suction and discharge tubing

• Injection fitting with spring-loaded check valve and all mounting hardware


Materials:

• Pump Head: PVDF (options: PTFE, Acrylic)

• Pump Head Inlet/outlet Valves:

• Cartridge valve body: PVDF

• Tube adapters: PVDF

• Check Balls: Ceramic

• Ball Seat O-ring: TFE/P (optional EP)

• Static Seal O-ring: FKM (optional EP)

• Suction Tubing: Clear PVC

• Discharge Tubing: Natural Polyethylene (LLDPE)

• Suction Footvalve/Strainer:

  • Body & Tubing adapter: PVDF (optional PTFE)

  • Strainer: Polypropylene

  • Check Ball: Ceramic (optional PTFE poppet)

  • Ball Seat O-ring: TFE/P (optional EP)

  • Static Seal O-ring: FKM (optional EP)

• Injection/Check valve:

• Body & insert: Polypropylene (optional PVDF, PTFE)

• Check Ball: Ceramic (optional PTFE poppet)

• Spring: Hastelloy C-276

• Ball Seat O-ring: TFE/P (optional EP)

• Static Seal O-ring: FKM (optional EP)
