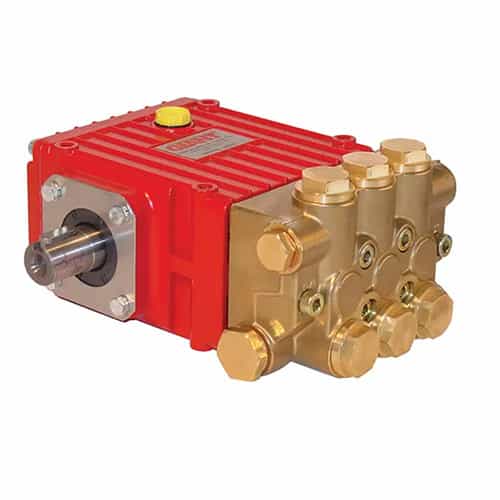

Giant Pumps P329RU7 Triplex Plunger Pump with Unloader and Injector - 4.1 GPM, 3450 RPM, 3500 PSI
Brand:
Mfr. Model #:
P329RU7
KR Part #:
PUP329RU7
Weight:
20.00 lbs
Temporarily Unavailable
This triplex plunger pump features solid ceramic oxide plungers and stainless steel valves for durability. Right shaft for direct and belt drive use and handles 3450 RPM. Pump produces a maximum flow rate of 4.1 GPM.
Technical Specifications
Max PSI: 3500
Max GPM: 4.1
Horsepower: 9.9
RPM: 3450
Max Temperature: 160 degrees F
Outlet Port: 3/8 inch
Inlet Port: 1/2 inch
Shaft Diameter: 24 millimeter
Crankcase Capacity: 14.2 ounce
Stroke: 8 millimeter
Product Description
4.1 GPM Positive Displacement Pump
Giant Pumps P329RU7 is an American made triplex plunger pump with a right-side mounted shaft, unloader, and injector. Its shaft is compatible with either direct or belt drive applications. Features 16mm ceramic oxide plungers. This pump generates a flow rate of 4.1 GPM and sustains a maximum pressure of 3500 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Product Number: P329RU7
- Includes: Unloader and Injector
- Flow: 4.1 GPM
- Maximum Discharge Pressure: 3500 PSI
- Crankshaft Speed: 3450 RPM
- Power: 9.9 HP
- Intermittent Flow: 4.1 GPM
- Intermittent Discharge Pressure: 4000 PSI
- Intermittent Crankshaft Speed: 3450 RPM
- Intermittent Power Consumption: 11.3 HP
- Max Temperature: 160 °F
- Inlet Port Size (2): 1/2" BSP
- Discharge Port Size (2): 3/8" BSP
- Plunger Diameter: 0.63 in. (16 mm)
- Stroke: 0.31 in. (8 mm)
- Maximum Inlet Pressure: 145 PSI
- Crankshaft Diameter: 24 mm
- Crankshaft Rotation: Top of Pulley Towards Manifold
- Crankshaft Mounting: Either Side
- Crankcase Oil Capacity US: 14.2 fl. oz.
- Extended Crankcase Oil Capacity: 17.0 fl. oz.
Key Component Materials:
- Manifold Material: Forged Brass
- Crankcase Material: Aluminum Die Cast
- Plunger Material: Solid Ceramic Oxide
- Valve Material: High Grade Stainless Steel
- Seal Material: Nitrile with Fabric Reinforcing
