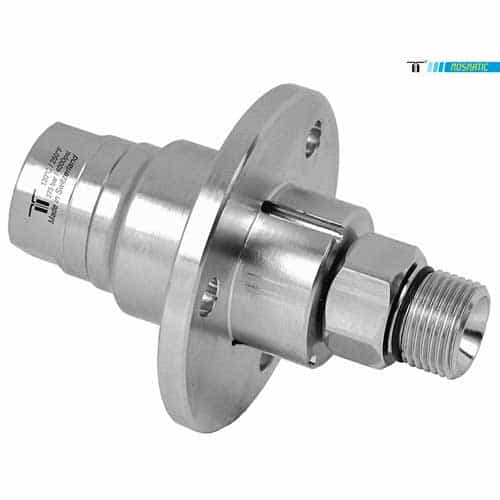

Mosmatic 58.063 Brass Self-Rotating Rotary Union Swivel DYF - 4000 PSI, 2000 RPM, 1/4 Inch NPTF, 3/8 M
Brand:
Mfr. Model #:
58.063
KR Part #:
SWM58063
Weight:
0.66 lbs
Availability:
2
Manuals
This is a self-rotating swivel engineered for high pressures. Utilizes a seal failure warning system. Made with nickel plated brass.
Technical Specifications
Max PSI: 4000
Inlet Port: 1/4 inch
Outlet Port: 3/8 inch
Max Temperature: 250 degrees F
RPM: 2000
Product Description
Flanged Swivel
This rotary union is designed for high pressure applications. Warns of seal failure through the weep holes. Swivel is crafted using nickel plated brass. Used for surface cleaners, parts washer, tire cleaners, high pressure, self-rotating applications.
Specifications:
- Pressure: 4000 PSI
- Temperature: 250 degrees F
- RPM: max. 2000 RPM
- Body: DYF: Brass, Nickel Plated
- Inner part: Stainless steel
- Seal: Carbide
- Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
Features:
- Flange for easy installation
- Seal failure warning, through week holes
- Maintenance free
- Carbide seal systems
Dimensions:
- G1: 1/4" NPTF
- G2: 3/8" M
- NW: 1/4"
- SW1: 0.87
- SW2: 0.75
- L1: 1.49
- L2: 0.39
- Weight: 13.5 oz
Applications:
- Surface Cleaners
- Parts Washer
- Tire Cleaners
- High Pressure
- Self-Rotating
