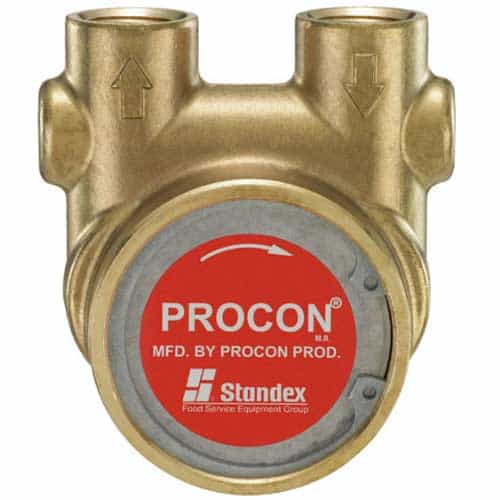

Brass Rotary Pump

Procon's 104B140F11BC Series 4 clamp on positive displacement rotary vane pump is made to be self-priming in water with a 6 ft. maximum lift and features a 1143 bronze coupling. This pump features port sizes with 1/2 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump
• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval
• Series: Series 4 Brass
• Mounting And Drive Configuration: - Clamp On With 1143 Bronze Coupling
• Flowrate: 140 GPH
• Elastomer: FDA Grade Nitrile - Type 21 Or Type 2106 Used Interchangeably
• Rotation / Slinger / Passivation / Strainer: Clockwise
• Clearances: Standard Clearance
• Valve Type and Configuration: Plastic, Hi Temp-Solid
• Pressure Range (Relief Valve Spring): 60 To 99 PSI - Default Setting 99 PSI
• Body Material Type: Brass
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: .25 To 1.50 HP
• Maximum Discharge Pressure: 250 PSI
• Rotation (Viewed from Nameplate End): Clockwise
• Weight: 4.00 lbs.
• Dimensions: 4.1" x 3.88" x 4.48"
• Self-Priming (Water): 6 Ft. Maximum Lift
• Port Size: 1/2 NPT Inlet and Outlet

Applications:

• Circulation
• Reverse Osmosis
• Booster Pumps
• Solar Applications
• Hydraulic Systems
• Desalination
