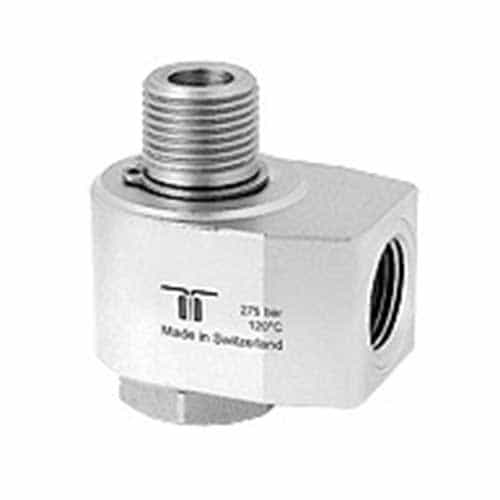

Mosmatic 43.905 Nickel Plated Brass WDB Rotary Union - 1/8 Inch x 1/8 Inch NPTF, 4000 PSI, 30 RPM
Brand:
Mfr. Model #:
43.905
KR Part #:
SWM43905
Weight:
0.63 lbs
A swivel for ceiling booms, high pressure hose reels, and high pressure cleaners. Nickel-plated brass construction. Tolerates a maximum pressure of 4000 PSI.
Technical Specifications
Max PSI: 4000
Max Temperature: 250 degrees F
RPM: 30
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Product Description
Hose Reel Swivel - 1/8 Inch
Mosmatic 43.905 is a high pressure swivel designed for use with ceiling booms, high pressure hose reels, and high pressure cleaners. Constructed with a nickel-plated brass body to resist corrosion. Features a maintenance free design and dual bearings. Handles a maximum pressure of 4000 PSI and a speed of 30 RPM.
Specifications:
- Pressure: 4000 PSI
- Temperature: 250°F
- RPM: 30
- Body: Brass, Nickel Plated
- Inner Part: Stainless-Steel
- Seal: O-ring NBR
- Bearing: WDB: Sliding Bearing
- Throughput: pH 3-12
- Medium: Filtered 10 Microns, Compressed Air (290 PSI)
Dimensions:
- G1 (F): 1/8”NPTF
- G2 (M): 1/8”NPTF
- NW: 1/4”
- H: 1.06
- L1: 1.77
- L2: 1.87
- L3: 1.14
- L4: 0.62
- SW: 0.87
Features:
- Slide or dual bearings systems
- Stainless steel
- Maintenance free
- Without snap ring, for Mosmatic ceiling boom
Applications:
- Ceiling Booms
- High Pressure Hose Reels
- High Pressure Cleaner
