1.5" Bore Cast Iron Flange Uni

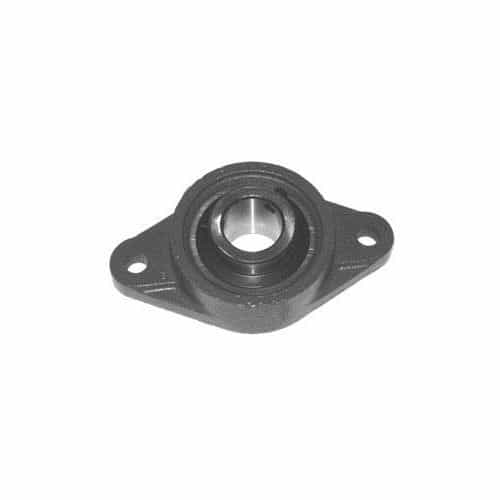

The UCFL208-24 Flange Bracket is a standard duty 2-bolt flange from IPTCI. This bolt flange is made with quality cast iron and is used to mount and support 1 1/2" diameter shafts used in automatic car washes. It has a set screw lock and a wide inner race bearing.

Specifications:

• Use with 1.5" diameter shafts
• Cast iron housing
• Set screw lock
• Wide inner race bearing
• Weight: 3.64 lbs.
• Bolt Used: 7/16"
• Housing Number: FL208
• Bearing Number: UC208-24
• Ideal for Ryko SoftGloss Front and Rear Brush Parts


Drawing Dimensions:

• Dimension A: 6 7/8"

• Dimension B: 3 15/16"

• Dimension Bi: 1.9370"

• Dimension d: 1 1/2" shaft diameter

• Dimension E: 5 21/32"

• Dimension G: 9/16"

• Dimension I: 53/64"

• Dimension L: 1 13/32"

• Dimension M: 1.189"

• Dimension N: .7480"

• Dimension S: 33/64"

• Dimension Z: 2"
