AR North America Pump RSV4G40HDF40EZ Pressure Washer Pump 4 GPM, 4000 PSI
Brand:
Mfr. Model #:
RSV4G40HDF40EZ
KR Part #:
ARSV4G40
Weight:
16.40 lbs
Availability:
2

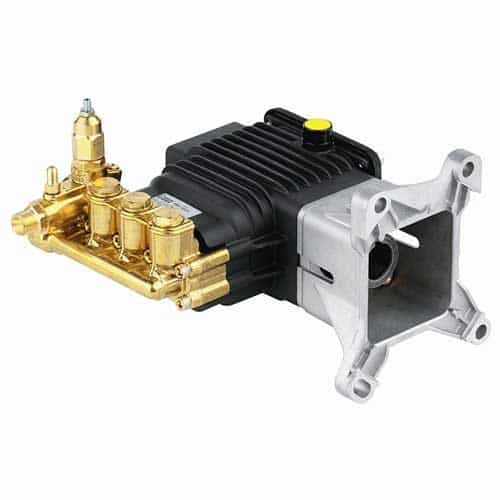

This is a 4GPM pressure washer pump designed for direct coupling with gas engines. It is equipped with a 1" hollow shaft. The pump can handle hot water up to 140 degrees Fahrenheit and produce a maximum pressure of 4000 PSI.
Technical Specifications
Max Temperature: 140 degrees F
Stroke: 9.4 millimeter
Shaft Diameter: 1 inch
RPM: 3400
Max PSI: 4000
Max GPM: 4
Inlet Port: 3/8 inch
Horsepower: 11
Crankcase Capacity: 16 ounce
Bore: 15 millimeter
Product Description
4 GPM Pressure Washer Pump
AR North America RSV4G40HDF40EZ is a gas-driven plunger pump designed for direct drive applications. It has a 1" D style hollow shaft that couples with gas engines. This 4 GPM pressure washer pump’s crankcase is made with a die-cast material and the head is made with brass. Cooling fins are anodized for maximum heat tolerance. The shaft is engineered to handle a maximum speed of 3400 RPM. Materials used to construct the seals in this 4000PSI 4GPM pressure washer pump handle a maximum fluid temperature of 140 degrees Fahrenheit for applications requiring hot water. The pump produces a maximum flow rate of 4 GPM and handles a maximum pressure of 4000 PSI.
Specifications:
- Max GPM: 4
- Max L/Min: 15.1
- Max PSI: 4000
- RPM: 3400
- Shaft Size: 1"
- Shaft Version: D
- Shaft Type: Hollow
- Inlet: 3/8" F
- Outlet: 3/8" F
- Max Temp: 140° F
- Max Bar: 275
- Power EBHP: 11
- Bore Dia mm: 15
- Stroke mm: 9.4
- Crankshaft ID Stamp: 7
- Oil Capacity (oz): 16
- Weight: 14
