Chem-Flex 118106 Threaded Injector, 0.106 Orifice, 3.75 GPM, 1 Barb, Pink
Brand:
Mfr. Model #:
118106
KR Part #:
IN118106
Weight:
0.14 lbs
Availability:
2
Low Inventory Get It Today
Top-of-the-line chemical-resistant single hose barb injector. The threaded fitting allows for the installation of metering tips.
Technical Specifications
Max GPM: 3.75
Max PSI: 1000
Max Temperature: 175 degrees F
Inlet Port: 3/8 inch
Min PSI: 100
Min Temperature: 33 degrees F
Product Description

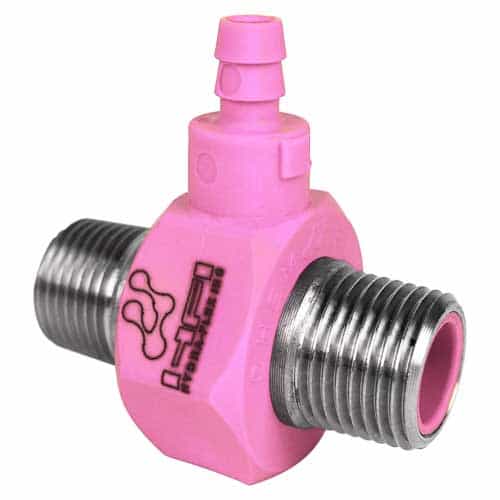

Pink Threaded Injector
This reliable Chem-Flex threaded injector has 3/8" NPT x 3/8" NPT connections. It is used for diluting one chemical with water.
Hydra-Flex Chem-Flex injectors are constructed with a Kynar-molded wetted surface and inserts combined with the
Size: 3/8" MNPT x 3/8" MNPT
Details:
- Flow rate: 3.75 GPM
- Flow orifice: 0.106
- Pressure range: 100 - 1000 PSI
- Temperature range: 33 - 175° F
- Single hose barb
-
Maximum wrench torque: 30 ft-lbs
Construction:
- Kynar venturi inserts
- 316 stainless steel connection
- Hastelloy spring
- Teflon check ball
- XFC o-ring material
