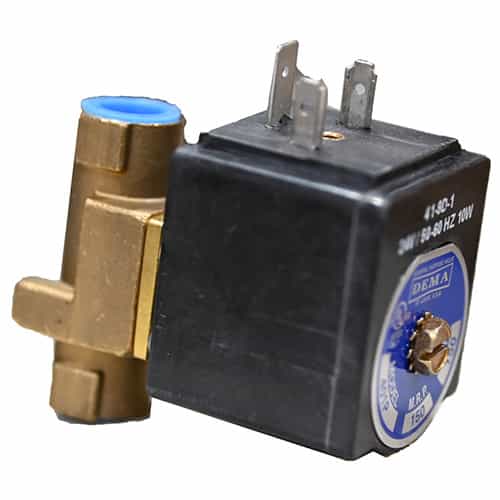

Dema 401PV.3D Brass Direct 24VDC DIN Solenoid Valve - 1/4 NPT, Viton
Brand:
Mfr. Model #:
401PV.3D
KR Part #:
SOD401PV24-DC
Weight:
0.87 lbs
Out of stock - Pre-Order Now!
Brass direct-acting solenoid valve with 1/4" ports. 24 volt DC, 150 PSI maximum pressure.
Prop 65
Technical Specifications
Inlet Port: 1/4 inch
Voltage DC: 24
Max Temperature: 200 degrees F
Max PSI: 150
Product Description
Viton Seal 24V Direct Acting Solenoid - 1/4" NPT
The Dema 401PV.3D solenoid valve is a direct-acting, normally closed valve designed for low pressure commercial applications. This brass body solenoid has 1/4" NPT pipe threads, a maximum pressure rating of 150 PSI, and a 7/64" orifice. This Dema solenoid valve has a DIN connector and Viton seals.
With direct-acting valves, the stem and plunger assembly opens the port of the valve directly and requires no minimum pressure to operate.
- 24 volt DC; DIN connection
- Direct-acting
- Normally closed
- Brass body material
- Viton seal
- 1/4" NPT pipe
- 2.09 GPM at 60 PSI
- 7/64" (.109") orifice
- .27 CV flow factor
- Maximum 150 PSI
- Minimum 0 PSI
- Rated for 200 degrees Fahrenheit fluid and 120 degrees Fahrenheit ambient.
Recommended Applications:
- Water
- Air
- Light Oil
- Non-Corrosive
- Non-Explosive Liquids
