Harsh Environment Poppet Valve with Flying Leads

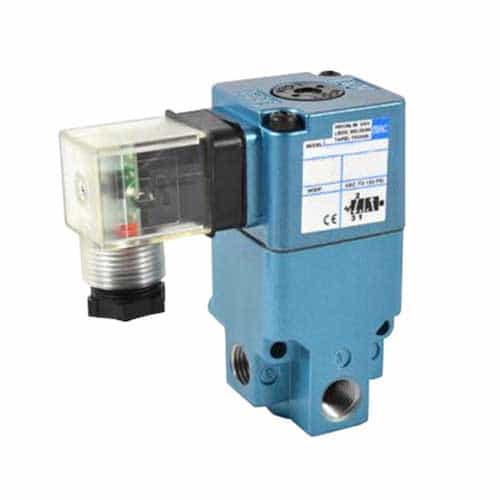

The MAC 225B-111BA is a direct solenoid 3-way poppet valve from the 200 Series. 200 Series valves are unique valves designed for hazardous applications. They have a short stroke solenoid, balanced poppet, and a powerful return spring. These attributes result in high shifting forces, consistently fast response times, and a long life.

Technical Specifications:

• 3-way operation
• 1/4" female NPT pipe
• .5 CV flow
• 0-150 PSI pressure range
• 0°-140° Fahrenheit temperature range
• Inline individual mounting
• Voltage: 120/60, 110/50, 24 volt DC (6 watt)
• Universal valve
• Non-locking manual operator
• Flying leads (18") electrical connection

Operational Benefits:

• Balanced poppet, immune to variations of pressure.
• Short stroke with high flow.
• The patented solenoid develops high shifting forces.
• Powerful return spring.
• Manual operator standard on all valves.
• Burn-out proof solenoid on AC service.

Series Features:

• The patented MACSOLENOID¨ with its non-burn out feature on AC service.
• Six valve functions with one Inline valve and four valve functions with one Manifold valve.
• A triple rated coil for 120/60, 110/50 or 24 VDC (6 Watt).
• Inline & add-a-unit manifold capability.
• Use on lube or non-lube service.
• Extremely rapid response and cycle rate.
• Various types of manual operators and electrical enclosures.
• Extremely long service life.
• Optional low wattage DC solenoids down to 1 watt.
