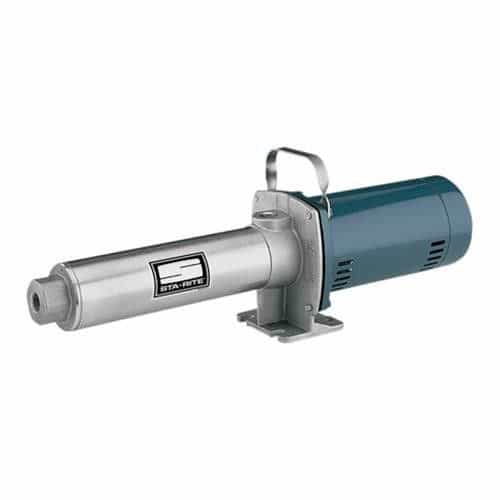

Sta-Rite HP10E311-02MS1 Booster Pump, 10 GPM

Brand:
Mfr. Model #:
HP10E311-02MS1
KR Part #:
HP10E311-2MS1
Weight:
43.00 lbs
GTIN:
022315315013
Availability:
4
Low Stock Warning
MSRP
$3,174.00
Now Only!
$1,526.73
Durable booster pump for car wash applications such as pressure washing, filtration, reverse osmosis, HVAC, and general-purpose pumping. Designed for continuous operation, with cast iron discharge, motor adapter and base. Stainless steel shaft, Buna-N o-rings, heavy duty ball bearings.



Technical Specifications

Max PSI: 315
Max Temperature: 140 degrees F
Phase: Three
Max GPM: 10
Horsepower: 2

Product Description

SignaSeal Booster Pump 10 Stage, 2HP, 1PH, 10GPM, 315 PSI

Durable booster pump for car wash, commercial, agricultural, pressure washing, filtration, reverse osmosis, HVAC, and general-purpose pumping. Design minimizes thrust loads, allowing for continuous operation without damage to motor bearings, mechanical seal, or pump hydraulic components. Stainless steel shaft, Buna-N O-rings, heavy duty ball bearings. Maximum suction lift of 15 feet. Some of the most durable booster pumps available.

Specifications:

  • Max. Working Pressure - 315 PSI
  • Max. Suction Lift - 15 feet
  • Maximum Limits - Prolonged use with liquids above 140°
  • Discharge -SB Series: cast iron, SSB Series: stainless steel 303 grade
  • Motor Adapter and Base -SB Series: cast iron, SSB Series: stainless steel 303 grade
  • Impeller - Acetal
  • Diffuser - Polycarbonate
  • Shaft - Stainless steel 304 grade
  • O-Rings - Buna-N
  • Mechanical Seal - Carbon/ceramic,Buna-N

Key features:

  • Proven SignaSeal(TM) staging system utilizes a patented ceramic wear surface that dominates with 1st-in-class performance.
  • Superior sand-handling and thrust management staging system
  • Ultra-smooth precision-molded acetal impellers for perfect balance, efficiency and highest performance
  • Precision-molded diffusers offer high resistance to corrosion and abrasion with superior performance
  • Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel part guarantees continuous water lubrication
  • Superior motor winding insulation materials protect against excessive moisture and contaminants assuring prolonged motor life
  • Die-cast precision rotor offers uniform high pressures for greater performance and efficiency
  • All electrical components are protected from dirt, dust, and insects by a dustproof canopy which ventilating air cannot contaminate
