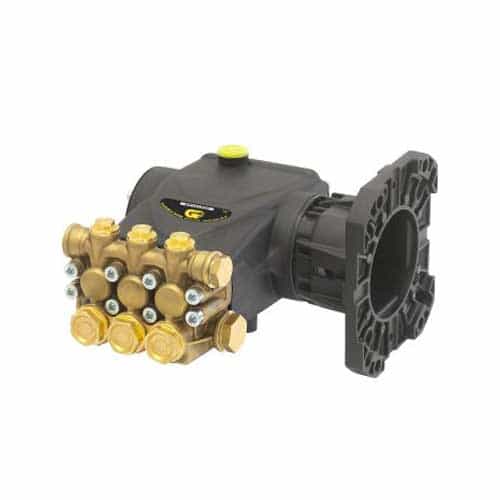

General Pump EP1509G8 Hollow Shaft Triplex Plunger Pump - EP Series, 3000 PSI, 3.7 GPM, 3400 RPM, 11.4 HP
Brand:
Mfr. Model #:
EP1509G8
KR Part #:
GPEP1509G8
Weight:
15.90 lbs
GTIN:
682491066156
Temporarily Unavailable
A gas flanged triplex plunger pump. Features ceramic plungers with a dual guide system. Endures a maximum pressure of 3000 PSI.
Technical Specifications
Max PSI: 3000
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 1 inch
Stroke: 9 millimeter
Product Description
Gas Flanged Pump
General Pump's EP1509G8 is a pump designed with a 1-inch hollow shaft that is flanged for coupling with (SAE J609B) gas powered engines. Equipped with ceramic plungers that feature a new dual guide system. Forged brass manifold withstands a maximum pressure of 3000 PSI. Handles a maximum flow rate of 3.7 GPM.
Specifications:
-
Maximum Volume: 3.7 GPM
-
Maximum Discharge Pressure: 3,000 PSI
-
Horsepower: 11.4 GHP
-
Maximum Pump Speed: 3400 RPM
-
Maximum Inlet Pressure: 125 PSI
-
Max. Inlet Vacuum: Flooded
-
Plunger Bore: .591 in/15 mm
-
Plunger Stroke: .354 in./9mm
-
Oil Capacity: 15 oz.
-
Maximum Fluid Temperature: 165° F
-
Inlet Port Thread: 1/2"-14 BSP-F
-
Discharge Port: Thread 3/8"-19 BSP-F
-
Shaft Diameter: 1 in./25.4 mm
-
Weight: 15.90 lbs.
UPC:
-
GTIN: 682491066156
