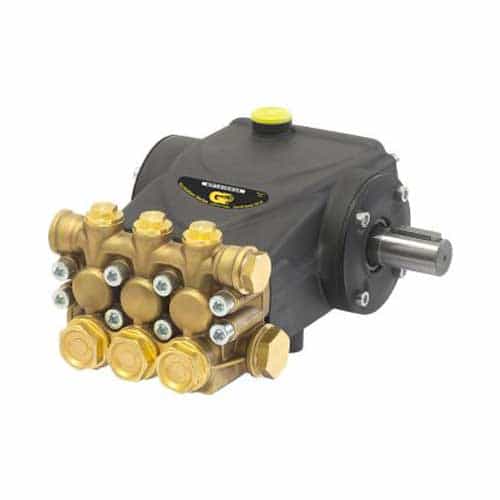

General Pump GPEP1513S17 Triplex Solid Shaft Pump - 3.2 GPM 3045 PSI
Brand:
Mfr. Model #:
EP1513S17
KR Part #:
GPEP1513S17
Weight:
15.40 lbs
GTIN:
682491065937
This General Pump has a new generation seal system that allows for a longer life.
Technical Specifications
Max PSI: 3045
RPM: 1750
Bore: 15 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
Product Description
3045 PSI General Pump
Dimensions: 9.5" X 8.38 X 5.1"
- Triplex Plunger Pump.
- Advanced forged brass manifold, increases working pressure to 4,000 PSI.
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system.
- Optimized outlet valves
- New dual lip oil seal.
Specifications:
- Max Volume: 3.2GPM
- Max Discharge Pressure: 3045PSI
- Max Pump Speed: 1750RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
