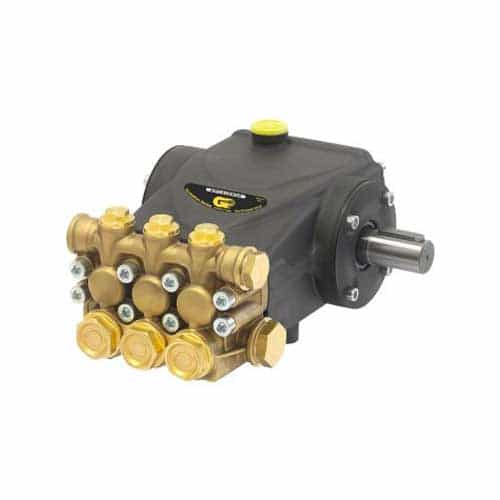

General Pump EP1810S17 Solid Shaft Pump - 3.4 GPM, 2500 PSI, 1750 RPM, 5.8 EBHP
Brand:
Mfr. Model #:
EP1810S17
KR Part #:
GPEP1810S17
Weight:
15.40 lbs
GTIN:
682491065944
This General Pump has a new generation seal system that allows for a longer life.
Technical Specifications
Max PSI: 2500
RPM: 1750
Bore: 18 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
Stroke: 10 millimeter
Product Description
2500 PSI General Pump
This EP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help with a long lasting life warranty.
Dimensions: 9.5" X 8.38 X 5.1"
- Triplex Plunger Pump.
- Advanced forged brass manifold, increases working pressure to 4,000 PSI.
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system.
- Optimized outlet valves
- New dual lip oil seal.
Specifications:
- Max Volume: 3.4 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
