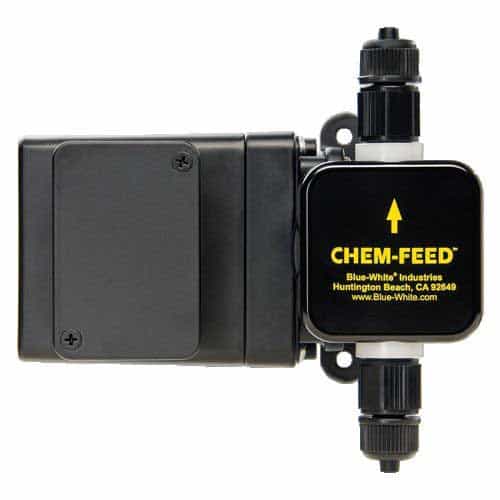

Chem-Feed C-600P Series Diaphragm Metering Pump

A great, economical metering pump for your wash facility. Made from durable epoxy coated metal, Chem-Feed C-600P Series pumps are sure to have a long service life.

Dimensions: 6-1/2" H x 6-5/8" W x 5-3/8" D

• Easy access, side mounted adjustable mechanical output rate
• Double-ball inlet and outlet
• PVDF valve body, fitting, ceramic balls, Viton, TFE/P O-rings
• Facilitates smooth operation with permanently lubricated gear motor
• Spring loaded ceramic ball seal and polypropylene injection check valve
• 3/8" OD suction + discharge tubing and all mounting hardware
• Specially designed, boasting efficiency and high performance
• Ambient Temperature Range: 14° to 110° F
• Max viscosity: 1000 centipoise
• Max suction lift: 10 ft water
• Output accuracy: +/- 10% of max
• Turndown ratio: 27:1 standard models
• 230V / 60 HZ
• Oz. / min: 5.2
